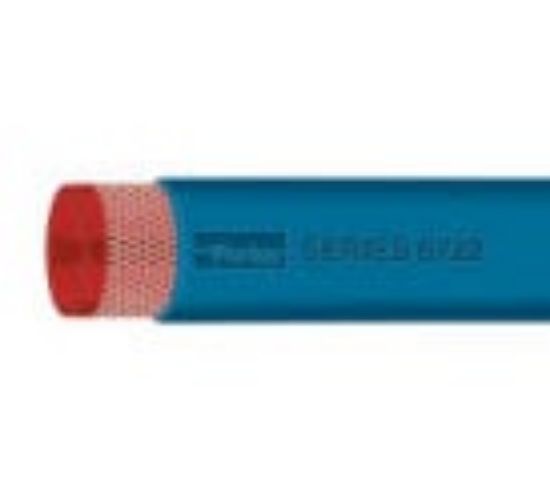

6722-0625100 - Silicone Standard Wall High Temperature Heater Hose, Series 6722

Silicone Standard Wall High Temperature Heater Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment inapplications to 350°F and 83 psi, Series 6722

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	100 in stock

SKU 6722-0625100

$12.16/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Standard Pack Qty (ft)	100
Hose I.D. (inch)	5/8	Minimum Burst Pressure (psi)	250
Minimum Burst Pressure	250 psi	Application	Engine
Specifications Met	SAE J20R3	Outside Diameter	0.940 inch
Package Type	Carton	Maximum Operating Pressure	250 psi
Inside Diameter	5/8 inch	Cover Color	Blue
Weight	0.36 kg/m	Maximum Operating Temperature	350 °F
Division	Hose Products Division	Hose Inner Tube Material	Silicone
Media	Coolants	Cover Structure	Glossy
Cover Material	Silicone	Minimum Operating Temperature	-65 °F
Minimum Bend Radius	44.5 mm	Hose Reinforcement Material	Multiple Plies of High Temperature Textile

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
