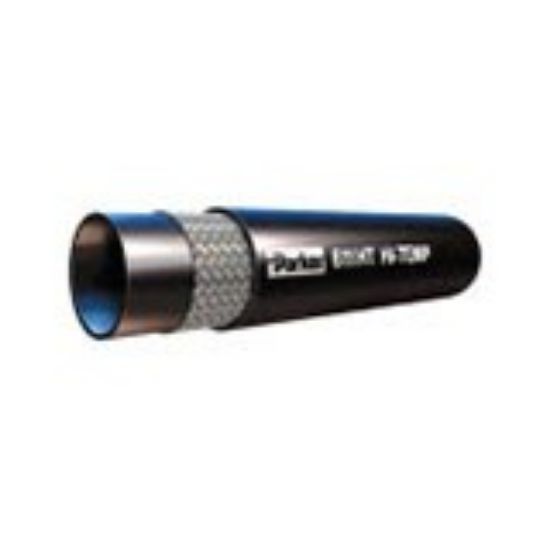

611HT-12 - High Temperature Transportation Hose 300-400 PSI – 611HT Hose

Parker's 611HT hose is a transportation hose that has a working pressure range of 300-400 PSI which is designed for high temperature applications.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	111 in stock

SKU 611HT-12

$22.52/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Inside Diameter	-12
Inside Diameter	3/4 inch	Nominal Hose Inside Diameter	18 mm
Outside Diameter	1 inch	Maximum Operating Pressure	2.1 MPa
Weight	0.36 kg/m	Division	Hose Products Division
Maximum Operating Temperature	302 °F	Hose Inner Tube Material	PKR® Rubber
Compatible Fitting	HY Series	Media	Fuels - Check fuel type with our catalogue chart.
Cover Material	Synthetic Rubber MSHA approved	Hose Cover Type	Synthetic Rubber MSHA Accepted
Hose Reinforcement Material	1 Braid of Fiber	Minimum Bend Radius	150 mm
Minimum Operating Temperature	-55 °F	Application	Lubricating Oils
Specifications Met	SAE J517 and 100R6

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English) (PDF)
