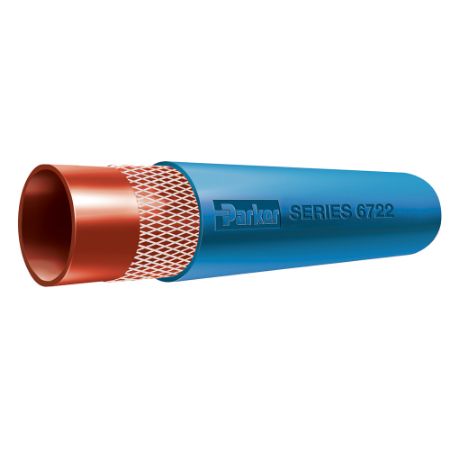

Silicone Standard Wall High Temperature Heater Hose, Series 6722

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series 6722 Silicone Standard Wall High Temperature Heater Hose provides excellent service across a wide variety of coolants and multiple engine heater and radiator applications. The silicone construction resists chemicals, aging, cold leaks, cracking, delamination, heat, ozone and peeling to maximize performance. The hose is flexible for easy routing and installation, resists the elevated temperatures common to engine compartments and is available in a variety of popular and convenient standard lengths.

Markets:

• General Industrial

• Transportation

Features/Benefits:

• Tube: Red silicone for superior heat resistance to 350°F.

• Reinforcement: Multiple textile plies for strength and kink resistance.

• Cover: Blue silicone for superior temperature resistance and easy identification.

Applications:

- media

• Coolant

• Hot water

- usage

• Coolant transfer in heater and coolant circuits

• DEF systems

• Agricultural equipment

• Buses

• Construction equipment

• Off-road equipment

• Trucks

Industry Standards:

• SAE J20R3 Class A

Safety/Technical:

• Design Factor: 3:1

• Nonconductive

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Hose I.D. (inch)	Standard Pack Qty (ft)	Minimum Burst Pressure (psi)	Hose Inner Tube Material	Media	Cover Structure	Minimum Bend Radius	Cover Material	Minimum Operating Temperature	Hose Reinforcement Material	Application	Specifications Met	Minimum Burst Pressure	Package Type	Inside Diameter	Outside Diameter	Maximum Operating Pressure	Cover Color	Weight	Maximum Operating Temperature	Division
6722-0250050	14 in stock	286 in stock	$6.11/foot	FT	1/4	50	250	Brick Red	Coolants	Glossy	0.5	Silicone	-65	Multiple Plies of High Temperature Textile	Engine	SAE J20R3	250	Carton	1/4	0.530	17	Blue	0.10	350	Hose Products Division
6722-0250250	Backordered	51 in stock	$6.78/foot	FT	1/2	250	250	Brick Red	Coolants	Glossy	12.7 mm	Silicone	-54 °C	Multiple Plies of High Temperature Textile	Silicone Coolant	SAE J2387	250 psi	Reel	1/2 inch	0.530 inch	17 bar	Blue	0.15 kg/m	176 °C	Hose Products Division
6722-0375050	Backordered	1537 in stock	$8.90/foot	FT	3/8	50	250	Brick Red	Coolants	Glossy	0.8	Silicone	-65	Multiple Plies of High Temperature Textile	Engine	SAE J20R3	250	Carton	3/8	0.690	17	Blue	0.13	350	Hose Products Division
6722-0375250	Backordered	384 in stock	$7.58/foot	FT	3/8	250	250	Brick Red	Water	Glossy	19.1 mm	Silicone	-65 °F	Multiple Plies of High Temperature Textile	Engine	SAE J2387	17.2 bar	Reel	3/8 inch	0.700 inch	17 bar	Blue	0.13 lb/ft	350 °F	Hose Products Division
6722-0500050	Backordered	683 in stock	$11.36/foot	FT	1/2	50	250	Brick Red	Coolants	Glossy	1.5	Silicone	-65	Multiple Plies of High Temperature Textile	Engine	SAE J20R3	250	Carton	1/2	0.820	17	Blue	0.17	350	Hose Products Division
6722-0500250	Backordered	161 in stock	$9.69/foot	FT	1/2	250	250	Silicone	Coolants	Glossy	38.1 mm	Silicone	-54 °C	Multiple Plies of High Temperature Textile	Engine	SAE J20R3	17.2 bar	Reel	1/2 inch	0.820 inch	250 psi	Blue	0.17 lb/ft	350 °F	Hose Products Division
6722-0625050	Backordered	484 in stock	$13.60/foot	FT	5/8	50	250	Brick Red	Coolants	Glossy	1.8	Silicone	-65	Multiple Plies of High Temperature Textile	Engine	SAE J20R3	250	Carton	5/8	0.940	17	Blue	0.24	350	Hose Products Division
6722-0625100	Backordered	100 in stock	$12.16/foot	FT	5/8	100	250	Silicone	Coolants	Glossy	44.5 mm	Silicone	-65 °F	Multiple Plies of High Temperature Textile	Engine	SAE J20R3	250 psi	Carton	5/8 inch	0.940 inch	250 psi	Blue	0.36 kg/m	350 °F	Hose Products Division
6722-0625250	728 in stock	3553 in stock	$7.98/foot	FT	5/8	250	250	Silicone	Coolants	Glossy	45 mm	Silicone	-54 °C	Multiple Plies of High Temperature Textile	Engine	SAE J2387	17 bar	Reel	5/8 inch	0.940 inch	17 bar	Blue	0.36 kg/m	175 °C	Hose Products Division
6722-0750050	Backordered	598 in stock	$13.31/foot	FT	3/4	50	200	Brick Red	Coolants	Glossy	2.8	Silicone	-65	Multiple Plies of High Temperature Textile	Engine	SAE J20R3	200	Carton	3/4	1.070	14	Blue	0.26	350	Hose Products Division
6722-0750100	Backordered	371 in stock	$13.31/foot	FT	3/4	100	200	Brick Red	Water	Glossy	69.9 mm	Silicone	-54 °C	Multiple Plies of High Temperature Textile	Engine	SAE J2387	200 psi	Carton	19.1 mm	1.070 inch	14 bar	Blue	0.39 kg/m	350 °F	Hose Products Division
6722-0750250	Backordered	3043 in stock	$11.35/foot	FT	3/4	250	200	Silicone	Coolants	Glossy	70 mm	Silicone	-65 °F	Multiple Plies of High Temperature Textile	Silicone Coolant	SAE J2387	200 psi	Reel	19.1 mm	27.1 mm	200 psi	Blue	0.39 kg/m	347 °F	Hose Products Division
6722-0875100	Backordered	88 in stock	$13.88/foot	FT	7/8	100	175	Silicone	Coolants	Glossy	4.3 inch	Silicone	-65 °F	Multiple Plies of High Temperature Textile	Engine	SAE J20R3	175 psi	Carton	22.2 mm	1.190 inch	n/a	Blue	0.15 kg	350 °F	Hose Products Division
6722-1000050	Backordered	581 in stock	$16.99/foot	FT	1	50	175	Brick Red	Coolants	Glossy	5	Silicone	-65	Multiple Plies of High Temperature Textile	Engine	SAE J20R3	175	Carton	1	1.340	12	Blue	0.34	350	Hose Products Division
6722-1000100	Backordered	1908 in stock	$14.47/foot	FT	1	100	175	Silicone	Water	Glossy	5 inch	Silicone	-65 °F	Multiple Plies of High Temperature Textile	Engine	SAE J2387	175 psi	Carton	25.4 mm	1.340 inch	175 psi	Blue	0.51 kg/m	350 °F	Hose Products Division
