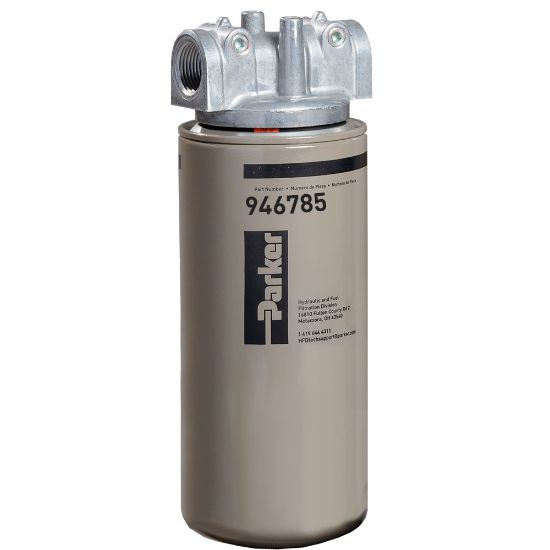

12AT210CBPGS12N - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 42 days
Partner Available:	Backordered

SKU 12AT210CBPGS12N

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Options	None	Indicator Type	Sold separately
Bypass Valve (psi)	25	Port Connection Type	SAE-12 ports
Filter Element	10 micron cellulose	Flow Rate (gpm)	25
Housing Material	Low Carbon Steel	Indicator Type	Sold separately
Compatible Element	946785	Mounting Type	Inline
Flow Rate	94	Port Type	SAE-12 ports
Weight	1.22	Indicator Pressure Setting	20
Filter Element Type	Canister	Pressure Rating	10.3
Division	Engine Mobile Hydraulic and Fuel Filtration Division	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at HFF.technical@support.parker.com or call 800-253-1258.
Maximum Operating Temperature	107	Options	None
Seal Material	Nitrile	Bypass Valve Pressure Rating	25
