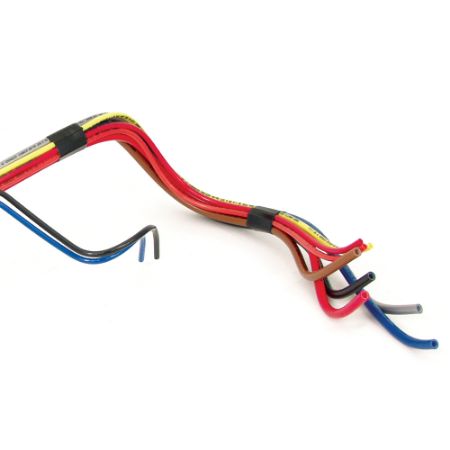

Nylon Air Brake Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Recognized as the global leader in air brake tubing, Parker develops brake system connections that maintain a basically fixed relationship between couplings during vehicle operation. The tubing is made from nylon and is available in more than ten colors for quick identification of lines. In addition, air brake tubing can be manufactured and prepared in pre-cut lengths, harnesses and preformed bundles that can reduce installation times by more than 70%. In tractor, trailer and other mobile air brake applications, time studies show an average chassis harness installation took 4 employees about 40 minutes to complete. However, with a Parflex preformed harness, installation time dropped to 10 minutes and only 1 employee was required to complete the installation. Based on labor rates of $30/hr, customers saved over $75 an hour and 150 production minutes. With reduced manufacturing and labor costs, increased dimensional stability, and excellent UV stability, Parflex Air Brake Tubing is the optimal solution for air brake applications in expanding transportation markets.

Parflex makes enough air brake tubing, also called DOT Tubing, in one year to circle the globe.

Markets:

• Transportation

• Military

• RV & Bus

Features:

• 100% pressure tested

• Excellent UV stability for extended tubing life

• Abrasion resistant for added protection

• Kink resistant, allowing for less downtime due to kinking failure

• Available in more than ten colors for quick identification of lines

• Reduced manufacturing and labor costs due to harness and preformed bundle options

• Tubing maintains extended dimensional integrity and stability for durability and increased tubing life

Applications:

• Air brake lines

Technical Specifications:

• Material:

Type A - Single-wall extruded Nylon (polyamide)

Type B - Nylon (polyamide) core, fiber reinforcement, Nylon (polyamide) cover/sheath

• Working and burst pressures rated at 73°F (23°C)

• The wall thickness is for reference only

• Packaged on reels, some sizes available in 100 ft. boxes

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Tube O.D. (inch)	Color	Standard Pack Qty (ft)	Minimum Bend Radius	Specifications Met	Tube Outside Diameter	Minimum Operating Temperature	Application	Minimum Burst Pressure	Weight	Maximum Operating Pressure	Cover Color	Size	Division	Maximum Operating Temperature	Compatible Fitting	Product Type	Tube Material	Media	Color	Tube Inside Diameter	Cover Material
1120-10B-BLK-250	5853 in stock	10336 in stock	$3.62/foot	FT	5/8	Black	250	2-1/2 inch	D.O.T. 49 CFR 571.106	0.625 inch	-40 °C	Air Brake	900 psi	0.07 lb/ft	150 psi	Black	-10	Parflex Division	93 °C	Prestomatic	Reinforced	Polyamide (PA) Fiber Reinforcement	Air	Black	0.441 inch	Polyamide (PA)
1120-10B-BLU-250	Backordered	496 in stock	$4.75/foot	FT	5/8	Blue	250	2-1/2 inch	SAE J844	15.9 mm	-40 °C	Transportation	900 psi	0.07 lb/ft	150 psi	Blue	-10	Parflex Division	93 °C	PTC	Reinforced	Polyamide (PA) Fiber Reinforcement	Air	Blue	11.2 mm	Polyamide (PA)
1120-10B-GRN-250	1052 in stock	8061 in stock	$3.66/foot	FT	5/8	Green	250	63.5 mm	SAE J844	0.625 inch	-40 °F	Air Brake	62.1 bar	0.104 kg/m	10.3 bar	Green	-10	Parflex Division	200 °F	SAE Cartridges	Reinforced	Polyamide (PA) Fiber Reinforcement	Air	Green	0.441 inch	Polyamide (PA)
1120-10B-ORG-250	Backordered	2000 in stock	$4.33/foot	FT	5/8	Orange	250	63.5 mm	SAE J844	15.9 mm	-40 °F	Air Brake	62.1 bar	0.104 kg/m	150 psi	Orange	-10	Parflex Division	93 °C	Prestomatic	Reinforced	Polyamide (PA) Fiber Reinforcement	Air	Orange	0.441 inch	Polyamide (PA)
1120-10B-RED-250	Backordered	2230 in stock	$4.75/foot	FT	5/8	Red	250	2-1/2 inch	SAE J844	0.625 inch	-40 °F	Air Brake	62.1 bar	0.07 lb/ft	10.3 bar	Red	-10	Parflex Division	200 °F	NTA®	Reinforced	Polyamide (PA) Fiber Reinforcement	Air	Red	11.2 mm	Polyamide (PA)
1120-12B-BLK-250	100 in stock	9052 in stock	$4.90/foot	FT	3/4	Black	250	3 inch	SAE J844	0.75 inch	-40 °C	Transportation	800 psi	0.086 lb/ft	10.3 bar	Black	-12	Parflex Division	200 °F	Air Brake	Reinforced	Polyamide (PA) Fiber Reinforcement	Air	Black	14.4 mm	Polyamide (PA)
1120-12B-GRN-250	155 in stock	90 in stock	$5.16/foot	FT	3/4	Green	250	76.2 mm	SAE J844	0.75 inch	-40 °C	Transportation	800 psi	0.086 lb/ft	10.3 bar	Green	-12	Parflex Division	93 °C	PTC	Reinforced	Polyamide (PA) Fiber Reinforcement	Air	Green	0.566 inch	Polyamide (PA)
1120-4A-BLK-100	200 in stock	2712 in stock	$1.18/foot	FT	1/4	Black	100 ft box	25.4 mm	SAE J844	6.4 mm	-40 °F	Air Brake	82.7 bar	0.012 lb/ft	10.3 bar	n/a	-4	Parflex Division	200 °F	PTC		Polyamide (PA)	Air	Black	0.17 inch	n/a
1120-4A-BLK-1000	6894 in stock	85738 in stock	$0.90/foot	FT	1/4	Black	1000	1 inch	D.O.T. 49 CFR 571.106	0.25 inch	-40 °F	Transportation	82.7 bar	0.012 lb/ft	150 psi	n/a	-4	Parflex Division	93 °C	Prestomatic		Polyamide (PA)	Air	Black	0.17 inch	n/a
1120-4A-BLU-1000	3273 in stock	22369 in stock	$0.92/foot	FT	1/4	Blue	1000	25.4 mm	SAE J844	0.25 inch	-40 °F	Transportation	1200 psi	0.018 kg/m	10.3 bar	n/a	-4	Parflex Division	200 °F	Air Brake		Polyamide (PA)	Air	Blue	4.3 mm	n/a
1120-4A-GRN-1000	2905 in stock	28085 in stock	$0.93/foot	FT	1/4	Green	1000	1 inch	D.O.T. 49 CFR 571.106	0.25 inch	-40 °F	Transportation	82.7 bar	0.018 kg/m	10.3 bar	n/a	-4	Parflex Division	93 °C	Air Brake		Polyamide (PA)	Air	Green	0.17 inch	n/a
1120-4A-ORG-1000	1000 in stock	16866 in stock	$0.93/foot	FT	1/4	Orange	1000	25.4 mm	D.O.T. 49 CFR 571.106	0.25 inch	-40 °F	Air Brake	82.7 bar	0.018 kg/m	10.3 bar	n/a	-4	Parflex Division	93 °C	NTA®		Polyamide (PA)	Air	Orange	0.17 inch	n/a
1120-4A-PUR-1000	Backordered	6000 in stock	$1.21/foot	FT	1/4	Purple	1000	1 inch	SAE J844	0.25 inch	-40 °F	Air Brake	1200 psi	0.012 lb/ft	10.3 bar	n/a	-4	Parflex Division	93 °C	NTA®		Polyamide (PA)	Air	Purple	0.17 inch	n/a
1120-4A-RED-1000	6366 in stock	8610 in stock	$0.92/foot	FT	1/4	Red	1000	1 inch	SAE J844	0.25 inch	-40 °F	Air Brake	82.7 bar	0.018 kg/m	10.3 bar	n/a	-4	Parflex Division	93 °C	PTC		Polyamide (PA)	Air	Red	0.17 inch	n/a
1120-4A-SIL-1000	Backordered	13670 in stock	$1.21/foot	FT	1/4	Silver	1000	25.4 mm	SAE J844	0.25 inch	-40 °F	Air Brake	82.7 bar	0.012 lb/ft	10.3 bar	n/a	-4	Parflex Division	93 °C	NTA®		Polyamide (PA)	Air	Silver	0.17 inch	n/a
1120-4A-YEL-1000	923 in stock	18197 in stock	$0.93/foot	FT	1/4	Yellow	1000	1 inch	SAE J844	6.4 mm	-40 °C	Air Brake	82.7 bar	0.012 lb/ft	10.3 bar	n/a	-4	Parflex Division	93 °C	SAE Cartridges		Polyamide (PA)	Air	Yellow	0.17 inch	n/a
1120-6B-BLK-100	184 in stock	8421 in stock	$1.63/foot	FT	3/8	Black	100 ft box	1-1/2 inch	D.O.T. 49 CFR 571.106	9.5 mm	-40 °C	Air Brake	1400 psi	0.027 lb/ft	150 psi	Black	-6	Parflex Division	200 °F	Air Brake	Reinforced	Polyamide (PA) Fiber Reinforcement	Air	Black	0.251 inch	Polyamide (PA)
1120-6B-BLK-500	5633 in stock	45882 in stock	$1.55/foot	FT	3/8	Black	500	38.1 mm	SAE J844	9.5 mm	-40 °C	Transportation	1400 psi	0.027 lb/ft	150 psi	Black	-6	Parflex Division	200 °F	Prestomatic	Reinforced	Polyamide (PA) Fiber Reinforcement	Air	Black	0.251 inch	Polyamide (PA)
1120-6B-BLU-500	3863 in stock	12745 in stock	$1.55/foot	FT	3/8	Blue	500	38.1 mm	D.O.T. 49 CFR 571.106	9.5 mm	-40 °C	Transportation	96.5 bar	0.04 kg/m	150 psi	Blue	-6	Parflex Division	200 °F	Air Brake	Reinforced	Polyamide (PA) Fiber Reinforcement	Air	Blue	6.4 mm	Polyamide (PA)
1120-6B-BRN-500	Backordered	414 in stock	$2.15/foot	FT	3/8	Brown	500	38.1 mm	SAE J844	0.375 inch	-40 °F	Transportation	96.5 bar	0.04 kg/m	10.3 bar	Brown	-6	Parflex Division	200 °F	SAE Cartridges	Reinforced	Polyamide (PA) Fiber Reinforcement	Air	Brown	6.4 mm	Polyamide (PA)
