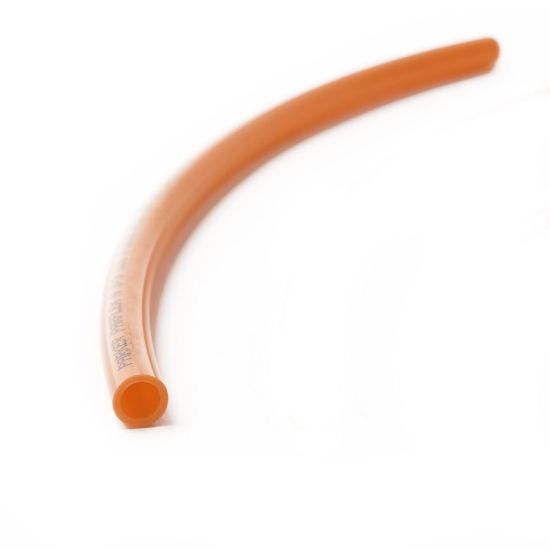

1120-4A-ORG-1000 - Nylon Air Brake Tubing

Name: 1120-4A-ORG-1000 - Nylon Air Brake Tubing
SKU: 1120-4A-ORG-1000
Price: 0.93 USD
Availability: InStock

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Manufacturer: Parker

Availability:

1000 in stock

Kansas City, KS

1,000

Partner Available:

16866 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1120-4A-ORG-1000

$0.93/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Tube O.D. (inch)	1/4
Standard Pack Qty (ft)	1000	Color	Orange
Application	Air Brake	Specifications Met	D.O.T. 49 CFR 571.106
Minimum Burst Pressure	82.7 bar	Tube Outside Diameter	0.25 inch
Cover Color	n/a	Weight	0.018 kg/m
Maximum Operating Pressure	10.3 bar	Size	-4
Maximum Operating Temperature	93 °C	Division	Parflex Division
Compatible Fitting	NTA®	Tube Material	Polyamide (PA)
Media	Air	Tube Inside Diameter	0.17 inch
Minimum Bend Radius	25.4 mm	Color	Orange
Cover Material	n/a	Minimum Operating Temperature	-40 °F
