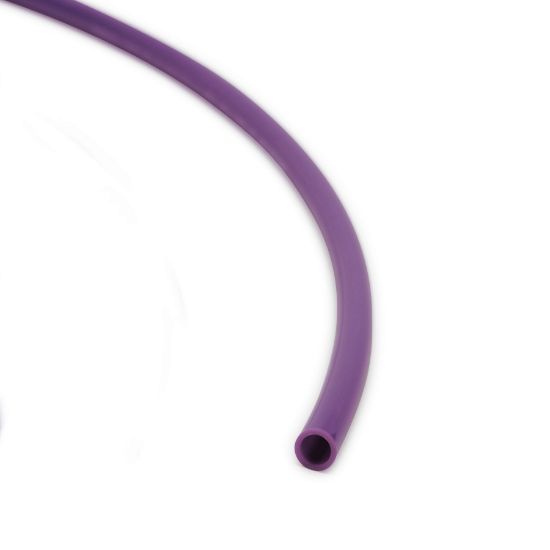

1120-4A-PUR-1000 - Nylon Air Brake Tubing

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	6000 in stock

SKU 1120-4A-PUR-1000

$1.21/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Tube O.D. (inch)	1/4
Standard Pack Qty (ft)	1000	Color	Purple
Color	Purple	Tube Inside Diameter	0.17 inch
Cover Material	n/a	Minimum Operating Temperature	-40 °F
Minimum Bend Radius	1 inch	Tube Outside Diameter	0.25 inch
Specifications Met	SAE J844	Minimum Burst Pressure	1200 psi
Application	Air Brake	Weight	0.012 lb/ft
Maximum Operating Pressure	10.3 bar	Cover Color	n/a
Division	Parflex Division	Size	-4
Maximum Operating Temperature	93 °C	Compatible Fitting	NTA®
Media	Air	Tube Material	Polyamide (PA)
