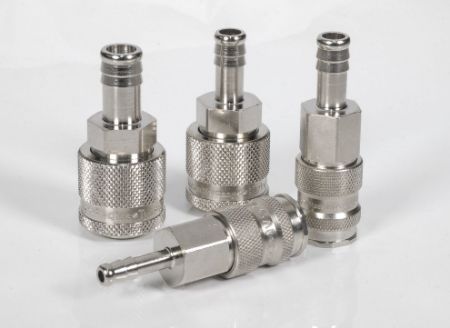

Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Rectus 21,23,30 Series Couplers (pneumatic, air) up to 300 psi connect with Industrial Interchange Nipples except for the 1/8" size that connects only with the 1/8” European Profile Nipples.
Parker's Rectus 21,23,30 Series Couplers are push to connect, single shut off couplers that mate with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards. These couplers have a slim profile and are corrosion resistant with stainless steel locking balls and valve spring. The sleeve guard protects against accidental disconnection. Heavy duty version has steel sleeve and valve body. Couplers are available in a range of sizes and materials suitable for pressure up to 300 psi.
Rectus 21,23,30 Series Nipples (pneumatic) connect with 1/8" Rectus 21,23,30 Series Couplers. These are small sized, single shut off pneumatic couplings. Nipples are 1/8" size only.
Technical Characteristics:
• Sizes: 1/8”, 3/8” and 1/4” Couplers; 1/8” Nipples
• Materials: Brass, Nickel Plated Brass, Nickel Plated Steel Couplers; Brass Nipples
• Port Ends: Female NPTF, Female NPSF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
• Seal Options: Nitrile
Markets:
• Industrial
• Construction
• Automotive service and repair
• Factory automation
Features/Benefits:
• Corrosion resistant valve with stainless steel locking balls and valve spring
• Heavy duty version has steel body and sleeve for durability
• Easy push to connect operation
• Slim profile is compact in confined spaces
• Sleeve guard protects against accidental disconnection
• Sizes 1/4" through 3/8" connect with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards for global interchangeability. :
• Unvalved nipple mates with valved coupler for a single shut off connection
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
• Packaging equipment
• Automation equipment
Read More...Parker's Rectus 21,23,30 Series Couplers are push to connect, single shut off couplers that mate with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards. These couplers have a slim profile and are corrosion resistant with stainless steel locking balls and valve spring. The sleeve guard protects against accidental disconnection. Heavy duty version has steel sleeve and valve body. Couplers are available in a range of sizes and materials suitable for pressure up to 300 psi.
Rectus 21,23,30 Series Nipples (pneumatic) connect with 1/8" Rectus 21,23,30 Series Couplers. These are small sized, single shut off pneumatic couplings. Nipples are 1/8" size only.
All other sizes of Rectus 21, 23, 30 Series Couplers connect with Industrial Interchange style Nipples.
Technical Characteristics:
• Sizes: 1/8”, 3/8” and 1/4” Couplers; 1/8” Nipples
• Materials: Brass, Nickel Plated Brass, Nickel Plated Steel Couplers; Brass Nipples
• Port Ends: Female NPTF, Female NPSF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
• Seal Options: Nitrile
Markets:
• Industrial
• Construction
• Automotive service and repair
• Factory automation
Features/Benefits:
• Corrosion resistant valve with stainless steel locking balls and valve spring
• Heavy duty version has steel body and sleeve for durability
• Easy push to connect operation
• Slim profile is compact in confined spaces
• Sleeve guard protects against accidental disconnection
• Sizes 1/4" through 3/8" connect with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards for global interchangeability. :
• Unvalved nipple mates with valved coupler for a single shut off connection
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
• Packaging equipment
• Automation equipment
| Action | SKU | Availability | Partner Available | Price | UOM | Body Material | Connection Thread Size | Thread Style | Connection Type | Hose I.D. | Body Size | Coupling Half | Plating Type | Sleeve Material | Coupling Half | Product Type | Media | Lock Type | Function | Product Style | Minimum Operating Temperature | Division | Compatible Fitting | Maximum Flow Rate | Maximum Operating Temperature | Valve Type | Technology | Seal Material | Connection Size | Maximum Operating Pressure | Body Material | Shape | Operation Type | Connection Type | Division | Product Series | Specifications Met | Diameter | Sleeve Type | Brand | Application | Region of Origin | Interchange Type | Fitting Connection Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 21KAAN10MPN | Backordered | 10 in stock | $18.94/each | EA | BRASS | 1/8"-27 | Male | NPTF | n/a | 1/8" | Coupler | Nickel-plated | Brass | Coupler | Quick Couplings Pneumatic | Low Pressure Fluids | Locking Balls | Single Shut-Off | Quick-Connect | -20 °C | Quick Coupling Division | Series 21 Plug | 1800 | up to 100 °C | Standard Valve | Fluid & Gas Handling | NBR | 1/8 inch | up to 507 psi | Brass | Straight | Sleeve | NPT | Low Pressure Connectors Europe Division | Series 21 | n/a | 5.0 | Push to Connect | Rectus | Air, High Flow | Germany | European Profile | ||
| 21KAAN13MPN | Backordered | Backordered | $43.78/each | EA | BRASS | 1/4"-18 | Male | NPTF | n/a | 1/8" | Coupler | Nickel-plated | Brass | Coupler | Quick Couplings Pneumatic | Compressed Air | Locking Balls | Single Shut-Off | Quick-Connect | -20 °C | Quick Coupling Division | Series 21 Plug | 1800 | up to 100 °C | Standard Valve | Fluid & Gas Handling | NBR | 1/4 inch | up to 507 psi | Brass | Straight | Sleeve | NPT | Low Pressure Connectors Europe Division | Series 21 | n/a | 5.0 | Push to Connect | Rectus | Air, High Flow | Germany | European Profile | ||
| 21KAIN10MPN | Backordered | 23 in stock | $19.17/each | EA | BRASS | 1/8"-27 | Female | NPTF | n/a | 1/8" | Coupler | Nickel-plated | Brass | Coupler | Quick Couplings Pneumatic | Low Pressure Fluids | Locking Balls | Single Shut-Off | Quick-Connect | -4 °F | Quick Coupling Division | Series 21 Plug | 1800 | up to 212 °F | Standard Valve | Pneumatics | NBR | 1/8 inch | up to 507 psi | Brass | Straight | Sleeve | Female | Low Pressure Connectors Europe Division | Series 21 | n/a | 5.0 | Push to Connect | Rectus | Air, High Flow | Germany | European Profile | ||
| 21KAIN13MPN | Backordered | Backordered | $15.62/each | EA | BRASS | 1/4"-18 | Female | NPTF | n/a | 1/8" | Coupler | Nickel-plated | Brass | Coupler | Quick Couplings Pneumatic | Compressed Air | Locking Balls | Single Shut-Off | Quick-Connect | -20 °C | Quick Coupling Division | Series 21 Plug | 1800 | up to 100 °C | Standard Valve | Fluid & Gas Handling | NBR | 1/4 inch | up to 507 psi | Brass | Straight | Sleeve | Female | Low Pressure Connectors Europe Division | Series 21 | n/a | 5.0 | Push to Connect | Parker | Air, High Flow | Germany | European Profile | ||
| 21SFAN10MXN | Backordered | 52 in stock | $28.37/each | EA | BRASS | 1/8"-27 | Male | n/a | 1/8" | Nipple | Nickel-plated | Brass | Plug | Quick Couplings Pneumatic | Compressed Air | Straight-Through | Quick-Connect | -40 °F | Quick Coupling Division | Series 21 Coupler | up to 464 °F | Without Valve | Pneumatics | Without Seal | 1/8 inch | Depends on the Choosen Associated Coupler | Brass | Straight | Sleeve | Male | Low Pressure Connectors Europe Division | Series 21 | 5.0 | Rectus | Air, High Flow | Germany | European Profile | |||||||
| 21SFAN13MXN | Backordered | Backordered | $19.57/each | EA | BRASS | 1/4"-18 | Male | n/a | 1/8" | Nipple | Nickel-plated | Brass | Plug | Quick Couplings Pneumatic | Compressed Air | Straight-Through | Quick-Connect | -40 °F | Quick Coupling Division | Series 21 Coupler | up to 464 °F | Without Valve | Fluid & Gas Handling | Without Seal | 1/4 inch | Depends on the Choosen Associated Coupler | Brass | Straight | Sleeve | Male | Low Pressure Connectors Europe Division | Series 21 | 5.0 | Rectus | Air, High Flow | Germany | European Profile | |||||||
| 21SFIN10MXN | Backordered | 200 in stock | $26.75/each | EA | BRASS | 1/8"-27 | Female | n/a | 1/8" | Nipple | Nickel-plated | Brass | Plug | Quick Couplings Pneumatic | Compressed Air | Straight-Through | Quick-Connect | -40 °F | Quick Coupling Division | Series 21 Coupler | up to 464 °F | Without Valve | Pneumatics | Without Seal | 1/8 inch | Depends on the Choosen Associated Coupler | Brass | Straight | Sleeve | Female | Low Pressure Connectors Europe Division | Series 21 | 5.0 | Rectus | Air, High Flow | Germany | European Profile | |||||||
| 21SFIN13MXN | Backordered | 20 in stock | $8.76/each | EA | BRASS | 1/4"-18 | Female | n/a | 1/8" | Nipple | Nickel-plated | Brass | Plug | Quick Couplings Pneumatic | Compressed Air | Straight-Through | Quick-Connect | -40 °C | Quick Coupling Division | Series 21 Coupler | up to 240 °C | Without Valve | Pneumatics | Without Seal | 1/4 inch | Depends on the Choosen Associated Coupler | Brass | Straight | Sleeve | Female | Low Pressure Connectors Europe Division | Series 21 | 5.0 | Parker | Air, High Flow | Germany | European Profile | |||||||
| 23KAAN13MPN | Backordered | 81 in stock | $35.24/each | EA | Brass, Nickel-plated | 1/4"-18 | Male | NPTF | n/a | 1/4" | Coupler | Nickel Plated | Low Pressure Fluids | Locking Balls | -4 °F | Quick Coupling Division | 212 °F | Valved | Nitrile | 300 psi | Brass, Nickel-plated | Quick Coupling Division | ISO 6150B | Push to Connect | High Flow | Male Threads | ||||||||||||||||||
| 23KAIN13MPN | Backordered | 144 in stock | $34.24/each | EA | Brass, Nickel-plated | 1/4"-18 | Female | NPSF | n/a | 1/4" | Coupler | Nickel Plated | Low Pressure Fluids | Locking Balls | -4 °F | Quick Coupling Division | 212 °F | Valved | Nitrile | 300 psi | Brass, Nickel-plated | Quick Coupling Division | ISO 6150B | Push to Connect | Air | Female Threads | ||||||||||||||||||
| 23KAIN17MPN | Backordered | 10 in stock | $123.28/each | EA | Brass, Nickel-plated | 3/8"-18 | Female | NPSF | n/a | 1/4" | Coupler | Nickel Plated | Low Pressure Fluids | Locking Balls | -4 °F | Quick Coupling Division | 212 °F | Valved | Nitrile | 300 psi | Brass, Nickel-plated | Quick Coupling Division | ISO 6150B | Push to Connect | Air | Female Threads | ||||||||||||||||||
| 23KATF06MPN | Backordered | 2 Limited Stock | $45.26/each | EA | Brass, Nickel-plated | N/A | n/a | Hose barb | 1/4" | 1/4" | Coupler | Nickel Plated | Low Pressure Fluids | Locking Balls | -4 °F | Quick Coupling Division | 212 °F | Valved | Nitrile | 300 psi | Brass, Nickel-plated | Quick Coupling Division | ISO 6150B | Push to Connect | High Flow | Hose Barb | ||||||||||||||||||
| 23KATF10MPN | Backordered | Backordered | $28.00/each | EA | Brass, Nickel-plated | N/A | n/a | Hose barb | 3/8" | 1/4" | Coupler | Nickel Plated | Compressed Air | Locking Balls | -4 °F | Quick Coupling Division | 212 °F | Valved | Nitrile | 300 psi | Brass, Nickel-plated | Quick Coupling Division | ISO 6150B | Push to Connect | High Flow | Hose Barb | ||||||||||||||||||
| 23KATP10MPN | 1 Limited Stock | Backordered | $101.75/each | EA | Brass, Nickel-plated | N/A | n/a | Push-Lok hose barb | 3/8" | 1/4" | Coupler | Nickel Plated | Low Pressure Fluids | Locking Balls | -4 °F | Quick Coupling Division | 212 °F | Valved | Nitrile | 300 psi | Brass, Nickel-plated | Quick Coupling Division | ISO 6150B | Push to Connect | Air | Push-Lok Hose Barb | ||||||||||||||||||
| 30KAAN13SPN | Backordered | 8 in stock | $103.44/each | EA | Steel, Nickel-plated | 1/4"-18 | Male | NPTF | n/a | 3/8" | Coupler | Nickel Plated | Low Pressure Fluids | Locking Balls | -4 °F | Quick Coupling Division | 212 °F | Valved | Nitrile | 300 psi | Steel, Nickel-plated | Quick Coupling Division | ISO 6150B | Push to Connect | Air | Male Threads | ||||||||||||||||||
| 30KAAN17SPN | Backordered | 14 in stock | $68.46/each | EA | Steel, Nickel-plated | 3/8"-18 | Male | NPTF | n/a | 3/8" | Coupler | Nickel Plated | Compressed Air | Locking Balls | -4 °F | Quick Coupling Division | 212 °F | Valved | Nitrile | 300 psi | Steel, Nickel-plated | Quick Coupling Division | ISO 6150B | Push to Connect | High Flow | Male Threads | ||||||||||||||||||
| 30KAAN21SPN | Backordered | Backordered | $56.56/each | EA | Steel, Nickel-plated | 1/2"-14 | Male | NPTF | n/a | 3/8" | Coupler | Nickel Plated | Compressed Air | Locking Balls | -4 °F | Quick Coupling Division | 212 °F | Valved | Nitrile | 300 psi | Steel, Nickel-plated | Quick Coupling Division | ISO 6150B | Push to Connect | High Flow | Male Threads | ||||||||||||||||||
| 30KATF10SPN | Backordered | Backordered | $61.47/each | EA | Steel, Nickel-plated | N/A | n/a | Hose barb | 3/8" | 3/8" | Coupler | Nickel Plated | Compressed Air | Locking Balls | -4 °F | Quick Coupling Division | 212 °F | Valved | Nitrile | 300 psi | Steel, Nickel-plated | Quick Coupling Division | ISO 6150B | Push to Connect | High Flow | Hose Barb | ||||||||||||||||||
| 30KATF13SPN | Backordered | Backordered | $55.53/each | EA | Steel, Nickel-plated | N/A | n/a | Hose barb | 1/2" | 3/8" | Coupler | Nickel Plated | Compressed Air | Locking Balls | -4 °F | Quick Coupling Division | 212 °F | Valved | Nitrile | 300 psi | Steel, Nickel-plated | Quick Coupling Division | ISO 6150B | Push to Connect | High Flow | Hose Barb | ||||||||||||||||||
| 30KATP10SPN | 20 in stock | Backordered | $155.29/each | EA | Steel, Nickel-plated | N/A | n/a | Push-Lok hose barb | 3/8" | 3/8" | Coupler | Nickel Plated | Compressed Air | Locking Balls | -4 °F | Quick Coupling Division | 212 °F | Valved | Nitrile | 300 psi | Steel, Nickel-plated | Quick Coupling Division | ISO 6150B | Push to Connect | Air | Push-Lok Hose Barb |
