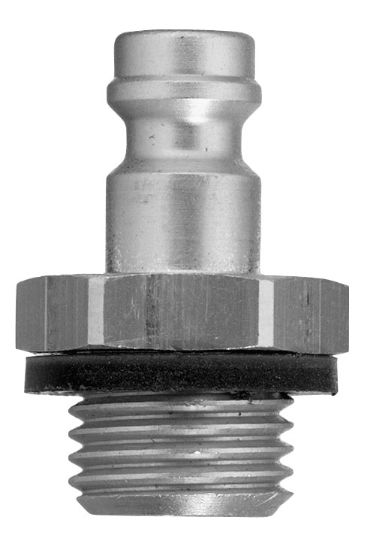

21SFAN10MXN - Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	52 in stock

SKU 21SFAN10MXN

$28.37/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Connection Thread Size	1/8"-27	Thread Style	Male
Hose I.D.	n/a	Body Size	1/8"
Coupling Half	Nipple	Brand	Rectus
Product Style	Quick-Connect	Minimum Operating Temperature	-40 °F
Diameter	5.0	Product Series	Series 21
Application	Air, High Flow	Technology	Pneumatics
Media	Compressed Air	Connection Size	1/8 inch
Function	Straight-Through	Product Type	Quick Couplings Pneumatic
Plating Type	Nickel-plated	Coupling Half	Plug
Sleeve Material	Brass	Division	Quick Coupling Division
Connection Type	Male	Valve Type	Without Valve
Seal Material	Without Seal	Compatible Fitting	Series 21 Coupler
Maximum Operating Temperature	up to 464 °F	Region of Origin	Germany
Maximum Operating Pressure	Depends on the Choosen Associated Coupler	Interchange Type	European Profile
Operation Type	Sleeve	Division	Low Pressure Connectors Europe Division
Shape	Straight	Body Material	Brass
