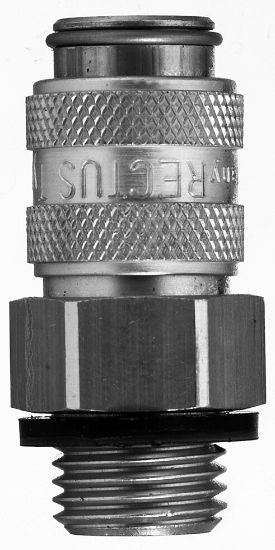

21KAAN13MPN - Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 66 days
Partner Available:	Backordered

SKU 21KAAN13MPN

$43.78/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Connection Thread Size	1/4"-18	Thread Style	Male
Connection Type	NPTF	Hose I.D.	n/a
Body Size	1/8"	Coupling Half	Coupler
Interchange Type	European Profile	Region of Origin	Germany
Maximum Operating Pressure	up to 507 psi	Body Material	Brass
Division	Low Pressure Connectors Europe Division	Shape	Straight
Operation Type	Sleeve	Product Style	Quick-Connect
Minimum Operating Temperature	-20 °C	Brand	Rectus
Specifications Met	n/a	Sleeve Type	Push to Connect
Application	Air, High Flow	Diameter	5.0
Product Series	Series 21	Connection Size	1/4 inch
Media	Compressed Air	Function	Single Shut-Off
Product Type	Quick Couplings Pneumatic	Lock Type	Locking Balls
Technology	Fluid & Gas Handling	Coupling Half	Coupler
Plating Type	Nickel-plated	Sleeve Material	Brass
Valve Type	Standard Valve	Connection Type	NPT
Division	Quick Coupling Division	Compatible Fitting	Series 21 Plug
Maximum Operating Temperature	up to 100 °C	Seal Material	NBR
Maximum Flow Rate	1800
