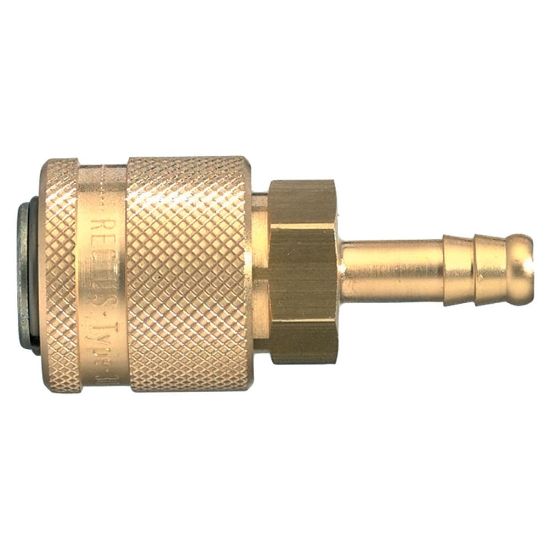

30KATF13SPN - Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 30KATF13SPN

$55.53/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Hose barb
Coupling Half	Coupler	Connection Thread Size	N/A
Thread Style	n/a	Body Material	Steel, Nickel-plated
Hose I.D.	1/2"	Body Size	3/8"
Division	Quick Coupling Division	Division	Quick Coupling Division
Application	High Flow	Media	Compressed Air
Valve Type	Valved	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	212 °F	Minimum Operating Temperature	-4 °F
Body Material	Steel, Nickel-plated	Seal Material	Nitrile
Specifications Met	ISO 6150B	Sleeve Type	Push to Connect
Plating Type	Nickel Plated	Lock Type	Locking Balls
Fitting Connection Type	Hose Barb
