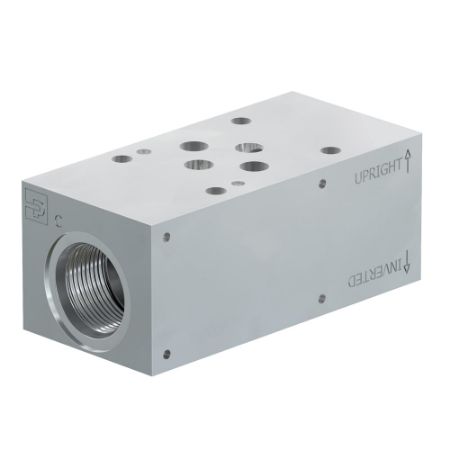

Cartpak Bodies
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s Cartpak bodies are designed to be mounted under a standard ISO 4401-03, NFPA D03, CETOP 3 size valve, and accept a common 10 size cartridge valve. This body and mounting style allow the designer the flexibility to use a single body to provide pressure, directional, flow, or load control, and may be “sandwiched” underneath a Parker D1 Series directional valve to provide the control functions for all portions of a hydraulic circuit. Parker’s 4-way manual rotary spool valves operate throughout a 90 degree rotation with a closed center condition at 45 degrees. These valves are available in either aluminum or ductile iron and rated to ISO fatigue test standards; use in miscellaneous applications within mobile or industrial hydraulic markets.
Markets:
• Miscellaneous Industrial
• Miscellaneous Mobile
Features/Benefits:
• 11 Body Options
• Standard D03 Mount
• Coated Bodies
• NFPA Fatigued Rated
• Aluminum and Steel Bodies
• Common 10 Size Cavities
Applications:
• Pressure control
• Flow control
• Directional control
• Load control
Read More...Markets:
• Miscellaneous Industrial
• Miscellaneous Mobile
Features/Benefits:
• 11 Body Options
• Standard D03 Mount
• Coated Bodies
• NFPA Fatigued Rated
• Aluminum and Steel Bodies
• Common 10 Size Cavities
Applications:
• Pressure control
• Flow control
• Directional control
• Load control
| Action | SKU | Availability | Partner Available | Price | UOM | Type/Configuration | Body Material | Seal Material | Actuation Type | Configuration | Operating Temperature | Body Material | Number of Cavities | Weight | Maximum Operating Pressure | Minimum Operating Temperature | Cavity Size | Flow Rate | Seal Material | Division | Maximum Operating Temperature | Division | Maximum Flow Rate | For Fluid Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BD03-ABN-A | Backordered | 46 in stock | $200.19/each | EA | A and B Port Interrupt | Aluminum | Nitrile | n/a | A and B Port Interrupt | -34 to 121 °C | Aluminum | 2 | 0.34 kg | 3000 psi | -34 °C | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 121 °C | Hydraulic Cartridge Systems Division | n/a | Synthetic Hydraulic Fluids | |
| BD03-ABN-S | Backordered | 2 Limited Stock | $333.36/each | EA | A and B Port Interrupt | Steel | Nitrile | n/a | A and B Port Interrupt | -34 to 121 °F | Steel | 2 | 2.15 lb | 5000 psi | -34 °C | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 250 °F | Hydraulic Cartridge Systems Division | n/a | Mineral-based Hydraulic Fluids | |
| BD03-ABT-A | 8 in stock | 39 in stock | $186.83/each | EA | A and B Ports to Tank | Aluminum | Nitrile | n/a | A and B Ports to Tank | -34 to 121 °C | Aluminum | 2 | 0.34 kg | 3000 psi | -34 °C | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 121 °C | Hydraulic Cartridge Systems Division | n/a | Synthetic Hydraulic Fluids | |
| BD03-ABT-S | Backordered | Backordered | $290.36/each | EA | A and B Ports to Tank | Steel | Nitrile | n/a | A and B Ports to Tank | -30 to 250 °C | Steel | 2 | 0.97 kg | 350 bar | -30 °F | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 250 °F | Hydraulic Cartridge Systems Division | n/a | Synthetic Hydraulic Fluids | |
| BD03-ABX-A | 4 in stock | 20 in stock | $153.99/each | EA | A and B Crossover | Aluminum | Nitrile | n/a | A and B Crossover | -30 to 250 °F | Aluminum | 2 | 0.75 lb | 3000 psi | -34 °C | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 250 °F | Hydraulic Cartridge Systems Division | n/a | Synthetic Hydraulic Fluids | |
| BD03-ABX-S | 3 in stock | 2 Limited Stock | $256.43/each | EA | A and B Crossover | Steel | Nitrile | n/a | A and B Crossover | -30 to 250 °C | Steel | 2 | 0.97 kg | 5000 psi | -30 °F | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 121 °C | Hydraulic Cartridge Systems Division | n/a | Synthetic Hydraulic Fluids | |
| BD03-BDA-A | Backordered | 12 in stock | $258.43/each | EA | B Port Drain to A | Aluminum | Nitrile | n/a | B Port Drain to A | -30 to 250 °F | Aluminum | 1 | 0.75 lb | 3000 psi | -34 °C | C10-3 | n/a | Nitrile | Hydraulic Systems Division | 121 °C | Hydraulic Cartridge Systems Division | n/a | Mineral-based Hydraulic Fluids | |
| BD03-DDX-A | Backordered | 6 in stock | $256.74/each | EA | Dual (Ports A and B) Drain to Crossover | Aluminum | Nitrile | n/a | Dual (Ports A and B) Drain to Crossover | -30 to 250 °C | Aluminum | 2 | 0.34 kg | 210 bar | -34 °C | C10-3 | n/a | Nitrile | Hydraulic Systems Division | 121 °C | Hydraulic Cartridge Systems Division | n/a | Synthetic Hydraulic Fluids | |
| BD03-DDX-S | Backordered | 1 Limited Stock | $393.31/each | EA | Dual (Ports A and B) Drain to Crossover | Steel | Nitrile | n/a | Dual (Ports A and B) Drain to Crossover | -34 to 121 °F | Steel | 2 | 2.15 lb | 5000 psi | -30 °F | C10-3 | n/a | Nitrile | Hydraulic Systems Division | 250 °F | Hydraulic Cartridge Systems Division | n/a | Mineral-based Hydraulic Fluids | |
| BD03-PN2-A | 1 Limited Stock | 16 in stock | $197.49/each | EA | P Port Interrupt (P Port to Inlet Valve Port 2) | Aluminum | Nitrile | n/a | P Port Interrupt (P Port to Inlet Valve Port 2) | -34 to 121 °F | Aluminum | 1 | 0.34 kg | 3000 psi | -34 °C | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 121 °C | Hydraulic Cartridge Systems Division | n/a | Mineral-based Hydraulic Fluids | |
| BD03-PN2-S | Backordered | Backordered | $265.57/each | EA | P Port Interrupt (P Port to Inlet Valve Port 2) | Steel | Nitrile | n/a | P Port Interrupt (P Port to Inlet Valve Port 2) | -30 to 250 °C | Steel | 1 | 2.15 lb | 350 bar | -34 °C | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 250 °F | Hydraulic Cartridge Systems Division | n/a | Mineral-based Hydraulic Fluids | |
| BD03-PN-A | 1 Limited Stock | 36 in stock | $145.51/each | EA | P Port Interrupt (P Port to Inlet Valve Port 1) | Aluminum | Nitrile | n/a | P Port Interrupt (P Port to Inlet Valve Port 1) | -30 to 250 °C | Aluminum | 1 | 0.75 lb | 210 bar | -30 °F | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 121 °C | Hydraulic Cartridge Systems Division | n/a | Mineral-based Hydraulic Fluids | |
| BD03-PNR-A | 3 in stock | 29 in stock | $153.99/each | EA | P Port Interrupt Reducing | Aluminum | Nitrile | n/a | P Port Interrupt Reducing | -34 to 121 °C | Aluminum | 1 | 0.34 kg | 3000 psi | -30 °F | C10-3 | n/a | Nitrile | Hydraulic Systems Division | 121 °C | Hydraulic Cartridge Systems Division | n/a | Synthetic Hydraulic Fluids | |
| BD03-PNR-S | Backordered | Backordered | $265.57/each | EA | P Port Interrupt Reducing | Steel | Nitrile | n/a | P Port Interrupt Reducing | -30 to 250 °F | Steel | 1 | 0.97 kg | 5000 psi | -30 °F | C10-3 | n/a | Nitrile | Hydraulic Systems Division | 250 °F | Hydraulic Cartridge Systems Division | n/a | Mineral-based Hydraulic Fluids | |
| BD03-PN-S | Backordered | 1 Limited Stock | $258.43/each | EA | P Port Interrupt (P Port to Inlet Valve Port 1) | Steel | Nitrile | n/a | P Port Interrupt (P Port to Inlet Valve Port 1) | -34 to 121 °F | Steel | 1 | 0.97 kg | 350 bar | -30 °F | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 250 °F | Hydraulic Cartridge Systems Division | n/a | Synthetic Hydraulic Fluids | |
| BD03-PNS-A | Backordered | Backordered | $202.28/each | EA | P Port Interrupt Sequence | Aluminum | Nitrile | n/a | P Port Interrupt Sequence | -34 to 121 °F | Aluminum | 1 | 0.75 lb | 210 bar | -30 °F | C10-3 | n/a | Nitrile | Hydraulic Systems Division | 250 °F | Hydraulic Cartridge Systems Division | n/a | Synthetic Hydraulic Fluids | |
| BD03-POC-A | Backordered | Backordered | $205.97/each | EA | Dual PO Check (A and B to Tank) | Aluminum | Nitrile | n/a | Dual PO Check (A and B to Tank) | -34 to 121 °C | Aluminum | 2 | 0.34 kg | 210 bar | -34 °C | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 121 °C | Hydraulic Cartridge Systems Division | n/a | Synthetic Hydraulic Fluids | |
| BD03-PT-A | Backordered | 42 in stock | $195.10/each | EA | P to T | Aluminum | Nitrile | n/a | P to T | -34 to 121 °F | Aluminum | 1 | 0.75 lb | 3000 psi | -34 °C | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 250 °F | Hydraulic Cartridge Systems Division | n/a | Mineral-based Hydraulic Fluids | |
| BD03-PT-S | Backordered | Backordered | $217.72/each | EA | P to T | Steel | Nitrile | n/a | P to T | -30 to 250 °C | Steel | 1 | 0.97 kg | 5000 psi | -34 °C | C10-2 | n/a | Nitrile | Hydraulic Systems Division | 250 °F | Hydraulic Cartridge Systems Division | n/a | Mineral-based Hydraulic Fluids |
