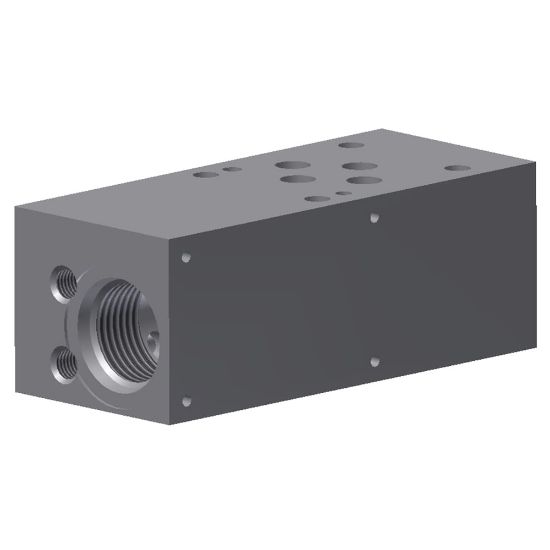

BD03-PN2-A - Cartpak Bodies

Name: BD03-PN2-A - Cartpak Bodies
SKU: BD03-PN2-A
Price: 197.49 USD
Availability: LimitedAvailability

REGIONAL - Parker’s Cartpak sandwich mounted bodies are designed to be mounted under a standard ISO 4401-03, NFPA D03, CETOP 3 size valve, and provide a multitude of valve functionality.

Manufacturer: Parker

Availability:

1 Limited Stock

Olivette, MO

Partner Available:

16 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU BD03-PN2-A

$197.49/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Aluminum
Seal Material	Nitrile	Type/Configuration	P Port Interrupt (P Port to Inlet Valve Port 2)
Minimum Operating Temperature	-34 °C	Cavity Size	C10-2
Flow Rate	n/a	Division	Hydraulic Cartridge Systems Division
Seal Material	Nitrile	Maximum Flow Rate	n/a
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Operating Temperature	121 °C
Configuration	P Port Interrupt (P Port to Inlet Valve Port 2)	Maximum Operating Pressure	3000 psi
Actuation Type	n/a	Operating Temperature	-34 to 121 °F
Number of Cavities	1	Weight	0.34 kg
Body Material	Aluminum	Division	Hydraulic Systems Division
