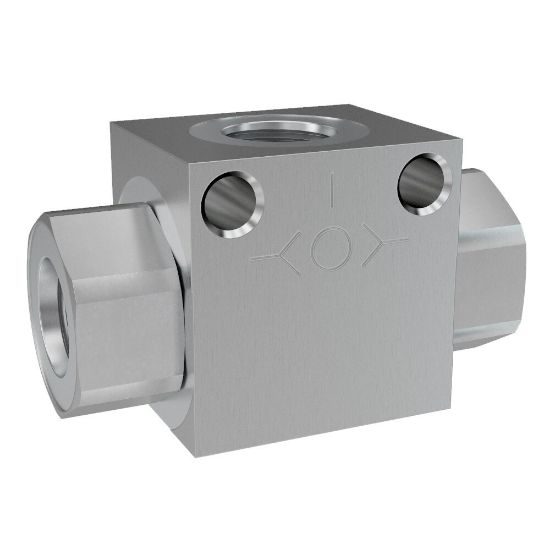

ASH-06-2 - Inline Shuttle Valves

REGIONAL - Parker's ball type inline shuttle valves are plumbed external from manifolds and line bodies and are available in two flow size options of 11 lpm (3 gpm) or 22 lpm (6 gpm), and pressures up to 207 bar (3000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	48 in stock

SKU ASH-06-2

$88.22/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	6 GAL/MIN, 22 L/MIN
Configuration	Inline	Flow Rate	22 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-34 to 121 °C
Maximum Operating Pressure	3000 psi	Weight	1 lb
Body Material	Steel	Actuation Type	Pressure Sensing
Filter Efficiency Rating	ISO 4406 18/16/13	Minimum Operating Temperature	-30 °F
Seal Material	Nitrile	Leak Rate	5
Maximum Operating Temperature	250 °F	Maximum Inlet Pressure Rating	207 bar
Function	Shuttle	Operation Type	Automatic
Division	Hydraulic Systems Division	Maximum Flow Rate	6 Gal/min
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
