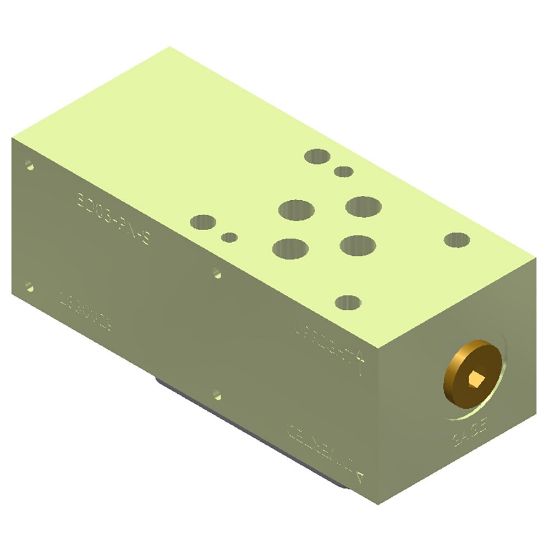

BD03-PNS-A - Cartpak Bodies

REGIONAL - Parker’s Cartpak sandwich mounted bodies are designed to be mounted under a standard ISO 4401-03, NFPA D03, CETOP 3 size valve, and provide a multitude of valve functionality.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU BD03-PNS-A

$202.28/each

Products specifications

Attribute name	Attribute value
UOM	EA	Type/Configuration	P Port Interrupt Sequence
Body Material	Aluminum	Seal Material	Nitrile
Weight	0.75 lb	Number of Cavities	1
Body Material	Aluminum	Division	Hydraulic Systems Division
Flow Rate	n/a	Maximum Operating Pressure	210 bar
Operating Temperature	-34 to 121 °F	Configuration	P Port Interrupt Sequence
Actuation Type	n/a	Minimum Operating Temperature	-30 °F
Cavity Size	C10-3	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	n/a	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	For Fluid Type	Synthetic Hydraulic Fluids
