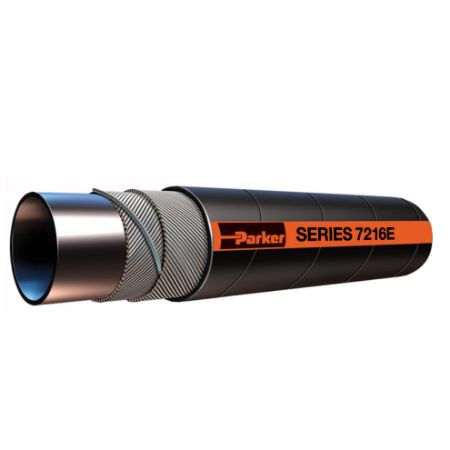

WILDCATTER® Oilfield Petroleum Transport Suction Hose, Series 7216E

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series 7216E Wildcatter Oilfield Petroleum Transport Suction Hose provides economical service across a wide variety of medium pressure, standard duty tank truck applications. The lightweight construction provides crush resistance and kink resistance for unimpeded flow, flexibility for easy handling and resistance to abrasion and weathering for maximum performance.

Markets:

• General Industrial

• Oil & Gas

• Transportation

Features/Benefits:

• Tube: Black nitrile for fuel and oil resistance to 180°F.

• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.

• Cover: Black nitrile for abrasion, heat, oil resistance and durability.

Applications:

- media

• Biodiesel (to B20 in dedicated service)

• Brine

• Crude oil

• Diesel

• Ethanol

• Gasoline

• Mild chemicals

• Petroleum waste

• Sediments

• Sludge

• Slurries

• Water

- usage

• Oilfield equipment and service trucks

• Waste pit recovery/transfer

• Bulk depots and storage facilities

• Transport tank trucksstatic charge to ground.

• Cover: Black nitrile for abrasion, heat, oil resistance and durability.

Safety/Technical:

• Design Factor: 4:1

Warnings:

• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.

• Do not use for oil or fuel transfer service in or on open water.

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Hose I.D. (inch)	Maximum Working Pressure (psi)	Media	Design Factor	Hose Inner Tube Material	Hose Reinforcement Material	Specifications Met	Application	Minimum Bend Radius	Minimum Operating Temperature	Cover Material	Cover Structure	Inside Diameter	Weight	Maximum Operating Pressure	Vacuum Pressure Rating	Cover Color	Package Type	Outside Diameter	Length per Package	Division	Compatible Fitting	Maximum Operating Temperature
7216E-1002	74 in stock	5994 in stock	$11.27/foot	FT	1	150	Fuels (Biodiesel to B20 in dedicated service)	n/a	Black	2 Plies of Textile with Dual Wire Helix	n/a	Petroleum Transfer	3 inch	-35 °F	Synthetic Rubber	Wrapped	25.4 mm	0.47 lb/ft	150 psi	Full	Black	Coil	33 mm	100 ft	Hose Products Division	43 Series	180 °F
7216E-1252	10 in stock	6145 in stock	$12.39/foot	FT	1-1/4	150	Fuels (Biodiesel to B20 in dedicated service)	n/a	Black	2 Plies of Textile with Dual Wire Helix	n/a	Petroleum Transfer	102 mm	-37 °C	Synthetic Rubber	Wrapped	1-1/4 inch	0.97 kg/m	10.3 bar	Full	Black	Coil	42.4 mm	100 ft	Hose Products Division	43 Series	82 °C
7216E-1502	17 in stock	5726 in stock	$12.91/foot	FT	1-1/2	150	Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart.	n/a	Black	2 Plies of Textile with Dual Wire Helix	n/a	Petroleum Transfer	127 mm	-35 °F	Synthetic Rubber	Wrapped	1-1/2 inch	0.92 lb/ft	10.3 bar	Full	Black	Coil	49.8 mm	100 ft	Hose Products Division	43 Series	180 °F
7216E-2002	19 in stock	9297 in stock	$16.12/foot	FT	2	150	Lubricants (Oils)	n/a	Nitrile	2 Plies of Textile with Dual Wire Helix	n/a	Petroleum Transfer	6 inch	-37 °C	Synthetic Rubber	Wrapped	50.8 mm	1.10 lb/ft	10.3 bar	Full	Black	Coil	2.500 inch	100 ft	Hose Products Division	43 Series	180 °F
7216E-2502	4 in stock	1687 in stock	$19.38/foot	FT	2-1/2	150	Fuels (Diesel) - Check fuel type with our catalogue chart.	n/a	Black	2 Plies of Textile with Dual Wire Helix	n/a	Petroleum Transfer	177.8 mm	-35 °F	Synthetic Rubber	Wrapped	63.5 mm	1.55 lb/ft	150 psi	Full	Black	Coil	3 inch	100 ft	Hose Products Division	43 Series	180 °F
7216E-3002	35 in stock	2459 in stock	$22.01/foot	FT	3	150	Fuels (Gasoline) - Check fuel type with our catalogue chart.	n/a	Black	2 Plies of Textile with Dual Wire Helix	n/a	Petroleum Transfer	8 inch	-35 °F	Synthetic Rubber	Wrapped	76.2 mm	3.10 kg/m	150 psi	Full	Black	Coil	3.660 inch	100 ft	Hose Products Division	43 Series	82 °C
7216E-4002	Backordered	1621 in stock	$41.31/foot	FT	4	150	Lubricants (Oils)	n/a	Nitrile	2 Plies of Textile with Dual Wire Helix	n/a	Petroleum Transfer	279.4 mm	-37 °C	Synthetic Rubber	Wrapped	4 inch	2.80 lb/ft	10.3 bar	Full	Black	Coil	4.650 inch	100 ft	Hose Products Division	43 Series	82 °C
