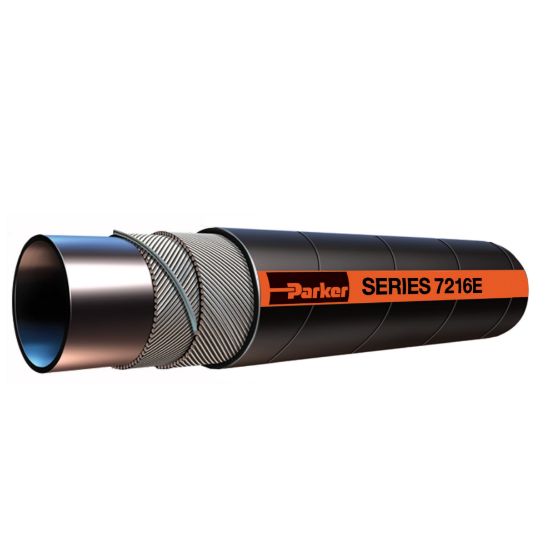

7216E-1002 - WILDCATTER® Oilfield Petroleum Transport Suction Hose, Series 7216E

Name: 7216E-1002 - WILDCATTER® Oilfield Petroleum Transport Suction Hose, Series 7216E
SKU: 7216E-1002
Price: 11.27 USD
Availability: InStock

Wildcatter Oilfield Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 180°F and 150 psi, Series 7216E

Manufacturer: Parker

Availability:

74 in stock

Olivette, MO

Partner Available:

5994 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7216E-1002

$11.27/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Maximum Working Pressure (psi)	150	Media	Fuels (Biodiesel to B20 in dedicated service)
Design Factor	n/a	Hose Inner Tube Material	Black
Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix	Specifications Met	n/a
Application	Petroleum Transfer	Minimum Bend Radius	3 inch
Minimum Operating Temperature	-35 °F	Cover Material	Synthetic Rubber
Cover Structure	Wrapped	Inside Diameter	25.4 mm
Weight	0.47 lb/ft	Maximum Operating Pressure	150 psi
Vacuum Pressure Rating	Full	Cover Color	Black
Package Type	Coil	Outside Diameter	33 mm
Length per Package	100 ft	Division	Hose Products Division
Compatible Fitting	43 Series	Maximum Operating Temperature	180 °F

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
