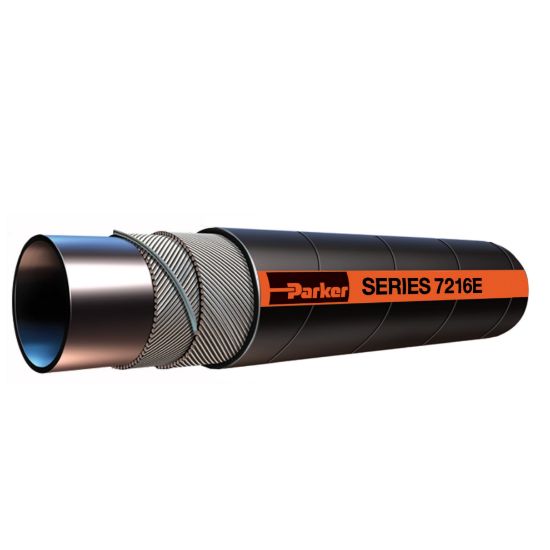

7216E-2002 - WILDCATTER® Oilfield Petroleum Transport Suction Hose, Series 7216E

Name: 7216E-2002 - WILDCATTER® Oilfield Petroleum Transport Suction Hose, Series 7216E
SKU: 7216E-2002
Price: 16.12 USD
Availability: InStock

Wildcatter Oilfield Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 180°F and 150 psi, Series 7216E

Manufacturer: Parker

Availability:

19 in stock

Olivette, MO	17
Springfield, MO	2

Partner Available:

9324 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7216E-2002

$16.12/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Maximum Working Pressure (psi)	150	Specifications Met	n/a
Application	Petroleum Transfer	Minimum Bend Radius	6 inch
Cover Material	Synthetic Rubber	Minimum Operating Temperature	-37 °C
Hose Reinforcement Material	2 Plies of Textile with Dual Wire Helix	Cover Structure	Wrapped
Weight	1.10 lb/ft	Vacuum Pressure Rating	Full
Cover Color	Black	Inside Diameter	50.8 mm
Outside Diameter	2.500 inch	Maximum Operating Pressure	10.3 bar
Package Type	Coil	Length per Package	100 ft
Division	Hose Products Division	Compatible Fitting	43 Series
Maximum Operating Temperature	180 °F	Media	Lubricants (Oils)
Design Factor	n/a	Hose Inner Tube Material	Nitrile

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
