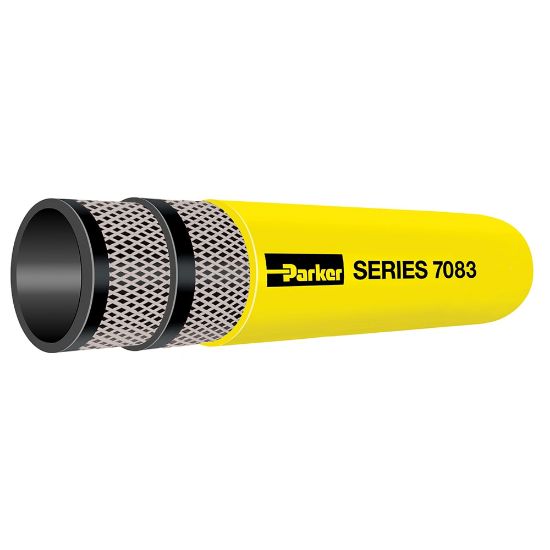

7083JHP75-600 - Sledgehammer Air Hose Factory Assemblies, Series 7082/7083

Note: This product is no longer available - please contact us for further assistance

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	3 in stock

SKU 7083JHP75-600

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	3/4
Cover Color	Yellow	Standard Package Quantity	1
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Division	Hose Products Division
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-40 °F
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Connection 2 Type	Universal
Hose Reinforcement Material	Mutiple Plies of Textile	Minimum Bend Radius	6 inch
Media	Air	Length	15.24 m
Maximum Operating Pressure	19.2 bar	Outside Diameter	29.4 mm
Connection 1 Type	Universal	Package Type	Carton
Inside Diameter	3/4 inch	Specifications Met	n/a
Application	Multipurpose	Fitting Material	Steel
Cover Color	Yellow	Weight	8.72 kg/ea

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
