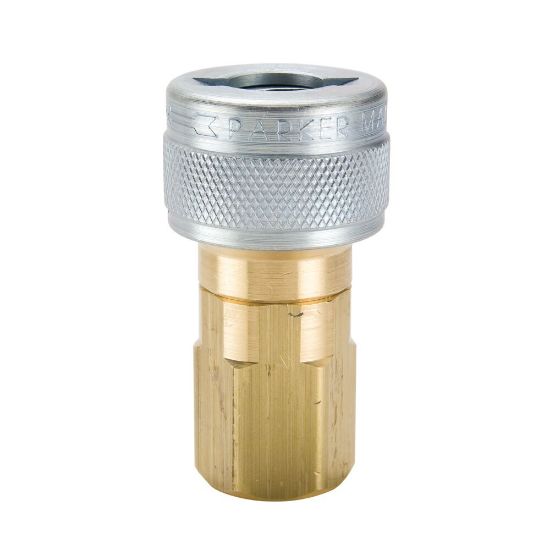

TL-501-4FP - Twist Lock Schrader Interchange, Quick Connect Air Couplings - TL Series

Parker's twist lock interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	20 in stock

SKU TL-501-4FP

$152.26/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1/4 - 18
Body Size (inch)	1/2	Hose I.D. (inch)	na
Coupling Half	Female Coupler	Connection Type	Female NPTF
Valve Type	Tubular	Hex Size	0.75 inch
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate plating on steel sleeve
Interchange Type	Schrader Twist Lock	Maximum Operating Pressure	300 psi
Application	Pneumatic	Division	Quick Coupling Division
Body Material	Brass	Product Type	Push to connect
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
