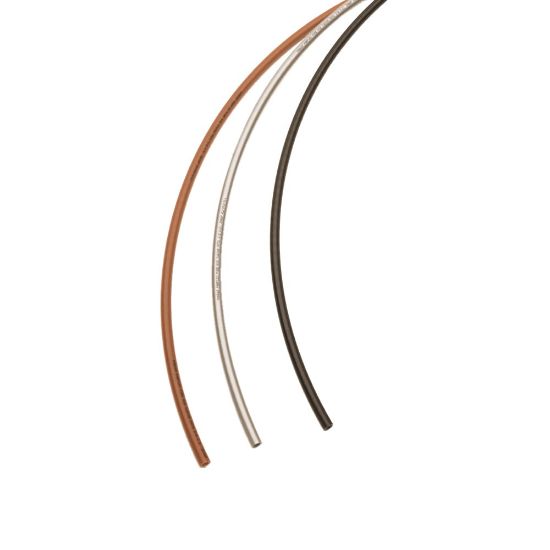

PAT6-BLK-500 - Nylon Pure Air Tubing

Nylon Pure Air Tubing has exceptional cleanliness properties and superior chemical and UV light resistance. Ideal choice for pure air and gas distribution systems.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	440 in stock

SKU PAT6-BLK-500

$3.31/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	3/8
Color	Black	Standard Pack Qty (ft)	500
Maximum Operating Temperature	93 °C	Compatible Fitting	Compression
Size	-6	Division	Parflex Division
Length per Package	500 ft	Weight	0.04 kg/m
Maximum Operating Pressure	24.1 bar	Cover Material	n/a
Tube Inside Diameter	6.4 mm	Minimum Bend Radius	38.1 mm
Minimum Operating Temperature	-70 °F	Tube Outside Diameter	9.5 mm
Application	Pneumatics	Minimum Burst Pressure	96.4 bar
Specifications Met	n/a	Tube Material	Polyamide (PA)
Media	Industrial Gases
