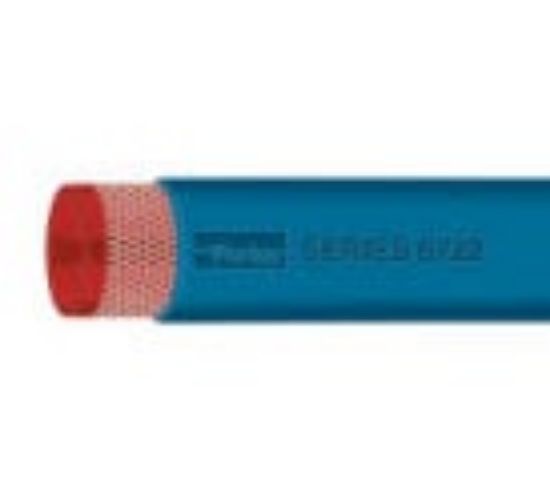

6722-0750100 - Silicone Standard Wall High Temperature Heater Hose, Series 6722

Silicone Standard Wall High Temperature Heater Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment inapplications to 350°F and 83 psi, Series 6722

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	371 in stock

SKU 6722-0750100

$13.31/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Standard Pack Qty (ft)	100
Hose I.D. (inch)	3/4	Minimum Burst Pressure (psi)	200
Cover Color	Blue	Weight	0.39 kg/m
Maximum Operating Temperature	350 °F	Division	Hose Products Division
Hose Inner Tube Material	Brick Red	Media	Water
Cover Structure	Glossy	Cover Material	Silicone
Minimum Operating Temperature	-54 °C	Minimum Bend Radius	69.9 mm
Hose Reinforcement Material	Multiple Plies of High Temperature Textile	Application	Engine
Minimum Burst Pressure	200 psi	Specifications Met	SAE J2387
Outside Diameter	1.070 inch	Package Type	Carton
Maximum Operating Pressure	14 bar	Inside Diameter	19.1 mm

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
