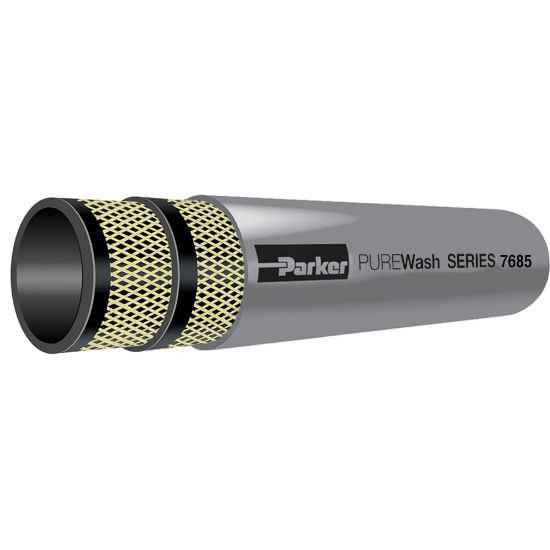

7685-6-GRA-RL - PUREWash Hose Series 7685

Name: 7685-6-GRA-RL - PUREWash Hose Series 7685
SKU: 7685-6-GRA-RL
Price: 4.96 USD
Availability: InStock

PUREWash Series 7685 is a high pressure washdown hose that can be used in virtually every type of food and beverage processing plant and in general industrial applications.

Manufacturer: Parker

Availability:

500 in stock

Joplin, MO

500

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 7685-6-GRA-RL

$4.96/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (mm)	9.5
Cover Color	Gray	Application	Equiment Sanitation, Preventative Maintenance
Hose I.D. (inch)	0.375	Hose O.D. (inch)	0.765
Hose O.D. (mm)	19.43	Standard Package Quantity	500 ft reel
Maximum Working Temperature (C)	121	Maximum Working Temperature (F)	250
Minimum Working Temperature (C)	-40	Minimum Working Temperature (F)	-40
Media	Water	Compatible Fitting	HY Series
Hose Inner Tube Material	Black	Specifications Met	n/a
Hose Reinforcement Material	4 Plies of Aramid	Application	Equipment Sanitation
Minimum Operating Temperature	-40 °C	Minimum Bend Radius	102 mm
Cover Structure	Smooth	Weight	0.31 kg/ft
Inside Diameter	0.375 inch	Maximum Operating Pressure	1500 psi
Outside Diameter	19.4 mm	Division	Hose Products Division
Maximum Operating Temperature	250 °F	Cover Color	Gray

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
