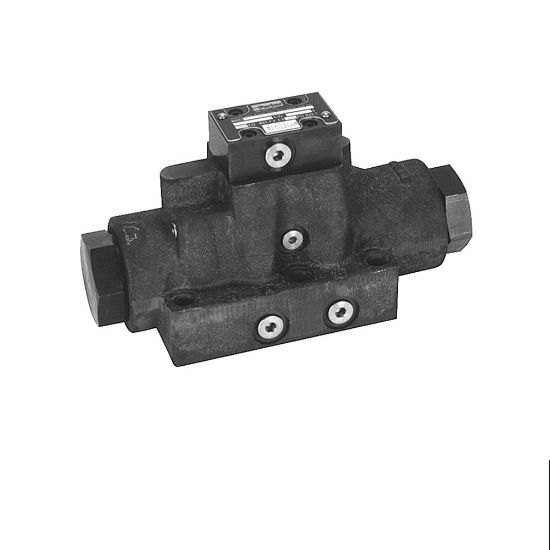

D6P4C2N - Oil Operated Directional Control Valve - D6P Series

Parker’s D6P directional control valves are 5-chamber, pilot operated valves.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU D6P4C2N

$997.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	Size	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
Mounting Type	Subplate	Maximum Operating Pressure	3000 PSI
Maximum Flow Rate	Up to 100 GPM depending on spool	Options	n/a
Minimum Operating Temperature	-4	Mounting Type	Manifold
Body Material	Gray Iron	Weight	11 kg
Maximum Operating Pressure	207 bar	Actuation Type	Hydraulic Pressure
Spool Code	P Port Blocked	Maximum Flow Rate	n/a
Seal Material	Nitrile	Spool Position	Double Operator
Size	NFPA D05H	Maximum Operating Temperature	+140
Division	Hydraulic Valve Systems Division	Valve Type	Oil Operated Directional Control Valve

Product resources

Literature and Reference Materials

Oil Operated Directional Control Valve Catalog - D6P series (PDF)
