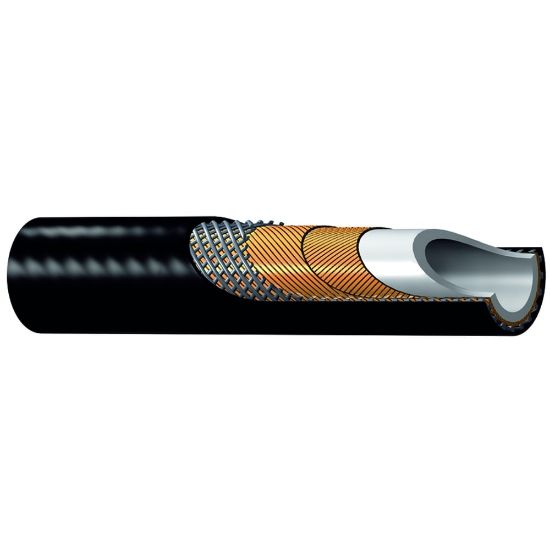

2380N-04V91 - Parflex 2380N Oil & Gas Hose

Parker 2380N and 2388N oil and gas hoses meet ISO 13628-5 and API 17EN specifications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	194 in stock

SKU 2380N-04V91

Products specifications

Attribute name	Attribute value
UOM	FT	Cover Color	Black
Division	Parflex Division	Application	Oil & Gas Hydraulic Systems
Specifications Met	DIN 1829-2	Maximum Operating Pressure	10000 psi
Inside Diameter	6.4 mm	Outside Diameter	9.7 mm
Weight	0.27 kg/m	Cover Material	Polyamide 12
Minimum Operating Temperature	-40 °F	Hose Reinforcement Material	2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire
Minimum Bend Radius	70 mm	Hose Inner Tube Material	Polyamide 11 Methanol Washed
Size	-4	Maximum Operating Temperature	100 °C
Compatible Fitting	8X Series	Design Factor	4
Media	Petroleum Hydraulic Fluids
