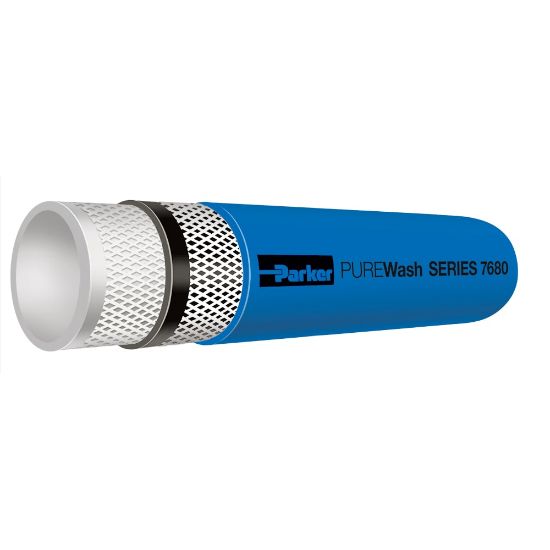

7680-12-BLU-RL - PUREWash Hose Series 7680

PUREWash Series 7680 hose can be used in virtually every type of food and beverage processing plant. The tube is FDA compliant (not to be used in food transfer) and the cover is non-marking and also available in blue for a cleaner look.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	1550 in stock

SKU 7680-12-BLU-RL

$6.00/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	0.75
Cover Color	Blue	Application	Equiment Sanitation, Preventative Maintenance
Hose O.D. (inch)	1.156	Hose I.D. (mm)	19.1
Hose O.D. (mm)	29.4	Standard Package Quantity	400 ft reel
Maximum Working Temperature (C)	100	Maximum Working Temperature (F)	212
Minimum Working Temperature (C)	-40	Minimum Working Temperature (F)	-40
Hose Inner Tube Material	Smooth	Media	Food & Beverage (Food & Beverage Processing Plants)
Application	Food Transfer	Specifications Met	n/a
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Minimum Bend Radius	152 mm
Minimum Operating Temperature	-40 °F	Hose Reinforcement Material	4 Plies
Cover Color	White	Weight	0.17 kg/m
Outside Diameter	1.156 inch	Inside Diameter	19.1 mm
Maximum Operating Pressure	300 psi	Compatible Fitting	HY Series
Maximum Operating Temperature	100 °C	Division	Hose Products Division

Product resources

Literature and Reference Materials

Training

Specifying Hose for Food & Beverage Applications (PDF)
