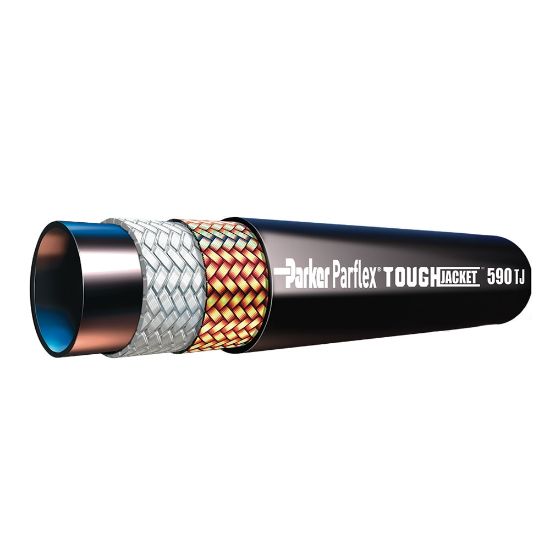

590TJ-6-50 - Hydraulic Hose - 590TJ

The TOUGHJACKET™ 590TJ compact hydraulic hose features working pressures from 5000-2000 psi, long continuous lengths (up to 500 feet) and is qualified to use with 56 Series Global Fittings. Exceptional abrasion resistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 590TJ-6-50

$6.63/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Standard Pack Qty (ft)	50	Hose Style	Single
Division	Parflex Division	Application	Over-the-Sheave
Media	Water	Maximum Operating Pressure	28 MPa
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-40 °C
Specifications Met	MSHA	Weight	0.19 lb/ft
Product Style	Single Line	Outside Diameter	0.640 inch
Size	-6	Cover Material	Polyurethane
Inside Diameter	10 mm	Compatible Fitting	56 Series
Minimum Bend Radius	2-1/4 inch	Hose Inner Tube Material	Copolyester
Hose Reinforcement Material	Braid of High Tensile Steel Wire	Design Factor	4:1
Hose Cover Type	ToughJACKET™
