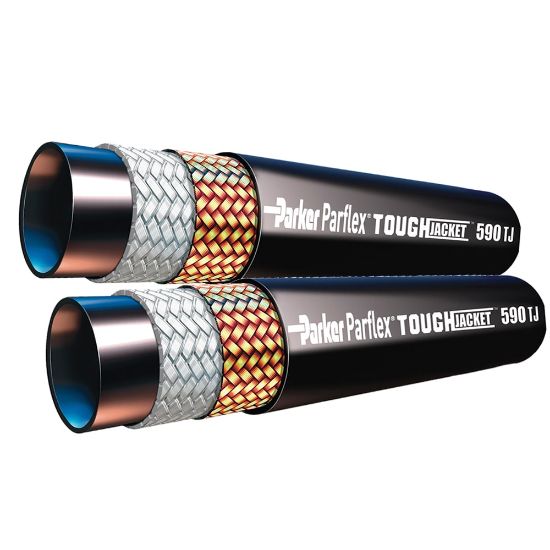

590TJ-6-6 - Hydraulic Hose - 590TJ

The TOUGHJACKET™ 590TJ compact hydraulic hose features working pressures from 5000-2000 psi, long continuous lengths (up to 500 feet) and is qualified to use with 56 Series Global Fittings. Exceptional abrasion resistance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 590TJ-6-6

$15.95/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Standard Pack Qty (ft)	250
Hose Style	Twin-line	Hose I.D. (inch)	3/8
Division	Parflex Division	Application	Construction Equipment
Media	Petroleum Hydraulic Fluids	Maximum Operating Pressure	280 bar
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-40 °F
Specifications Met	MSHA	Weight	0.38 lb/ft
Product Style	Twin-Line	Outside Diameter	1.280 inch
Size	-6	Cover Material	Polyurethane
Inside Diameter	3/8 inch	Compatible Fitting	56 Series
Minimum Bend Radius	57.2 mm	Hose Inner Tube Material	Copolyester
Hose Reinforcement Material	Braid of High Tensile Steel Wire	Design Factor	4:1
Hose Cover Type	ToughJACKET™
