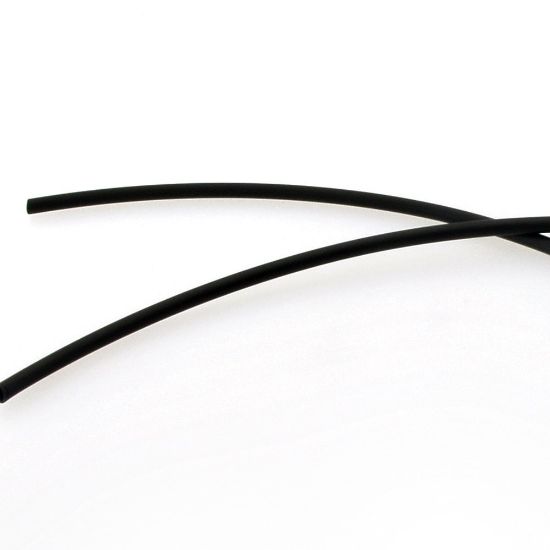

PEFR-8-0250 - PE Tubing - Flame Resistant

Spark resistant PEFR Series PE Tubing is flame resistant (UL 94 V-2) and excellent for pneumatic controls in HVAC applications. Resistant to stress cracking exceeds that of ordinary polyethylene tubing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	2000 in stock

SKU PEFR-8-0250

$1.31/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Tube O.D. (inch)	1/2
Standard Pack Qty (ft)	250	Maximum Operating Pressure	100 psi
Weight	0.61 kg/m	Cover Material	n/a
Minimum Bend Radius	1-3/4 inch	Minimum Operating Temperature	-65 °C
Application	Pneumatics	Minimum Burst Pressure	400 psi
Specifications Met	UL 94 V-2	Tube Outside Diameter	1/2 inch
Tube Material	Polyethylene (PE) (Flame Resistant)	Media	Air
Color	Black	Tube Inside Diameter	0.375 inch
Maximum Operating Temperature	66 °C	Compatible Fitting	Compression
Division	Parflex Division	Size	-8
Length per Package	500 ft	Material	Polyethylene (Flame Resistant )
Max. Operating Pressure	0.7 MPa 6.9 Bar 100 psi	Weight	0.41 LB/ft
Min. Operating Temperature	-85 °F -65 °C	Min. Bend Radius	1 3/4 Inch 39.1 MM
Length	500 ft 152 M	Min. Burst Pressure	400 psi 27.6 Bar 2.76 MPa
Inside Diameter	0.375 Inch 9.5 MM	Wall Thickness	0.062 Inch 1.6 MM
Outside Diameter	1/2 Inch 12.7 MM	Max. Operating Temperature	66 °C 150 °F
Media	Air	Size	-8
Parker Division	Tubing	Parker Group	Fluid Connector
Color	Black
