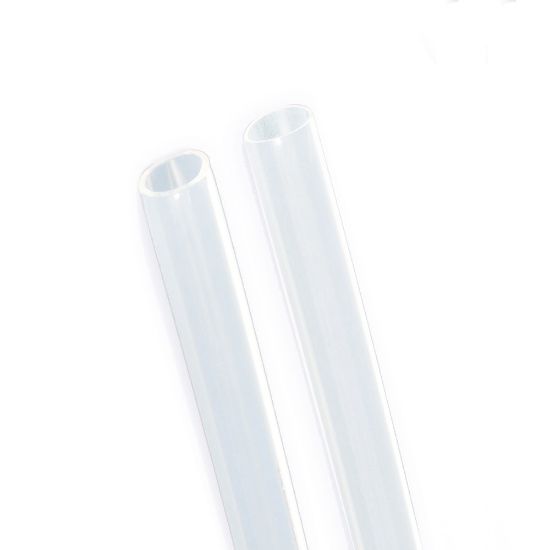

105-0250047-NT-500 - PFA High Purity Tubing

High Purity PFA Series 105 and 205 are manufactured for use in hostile environments where purity is critical. Testing proves that a high purity PFA tube is able to withstand corrosive surfactants for longer periods of time than standard PFA.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 105-0250047-NT-500

$4.63/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Order Size	1/4
Product Type	Heavy Wall	Tube Wall Thickness	0.047
Tube Outside Diameter	0.25	Tube Inside Diameter	0.156
Standard Pack Qty (ft)	500.0	Application	Semiconductor
Media	Water	Maximum Operating Pressure	340 psi
Maximum Operating Temperature	260 °C	Minimum Operating Temperature	-100 °F
Specifications Met	USP Class VI	Weight	0.028 lb/ft
Color	Clear	Tube Material	Perfluoroalkoxy Alkanes (PFA) High Purity
Size	1/4 inch	Compatible Fitting	Compress-Align®
Minimum Bend Radius	13 mm	Tube Outside Diameter	6.4 mm
Length per Package	152.4 m	Tube Inside Diameter	0.156 inch
Minimum Burst Pressure	1360 psi
