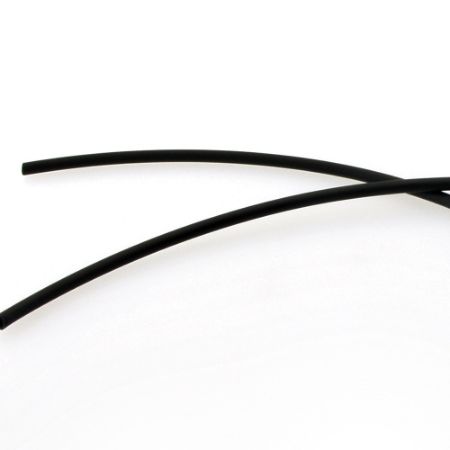

PE Tubing - Flame Resistant

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's PEFR Series Tubing features exceptional flame, spark and stress crack resistance. It is designed for use in industrial pneumatic markets for purposes that involve weld spatter and spark environments and pneumatic controls in HVAC applications. Its resistance to environmental stress cracking exceeds that of ordinary polyethylene tubing, as measured by ASTM D-1693 (10% IGEPAL). Utilizing PEFR Series Tubing for industrial applications in spark and weld-spatter environments will allow for successful and safe system operation without hose damage or stress cracking. For more product information, download the literature listed on the Product Support tab.

Markets:

• Industrial Pneumatics

• HVAC

Features/Benefits:

• Excellent stress crack resistance for high performance in weld spatter and spark environments

Applications:

• Pneumatic controls in HVAC applications

• Weld spatter/spark environments

Certifications/Compliance:

• UL 94 V-2

• ASTM D-1693 (10% IGEPAL) for stress crack resistance

Technical Specifications:

• Extruded from flame resistant linear low-density polyethylene (LLDPE)

• Working and burst pressures rated at 73°F (23°C)

• The wall thickness is for reference only

• For tube support use, reference Catalog 4660 Tubing/Fitting Compatibility Chart

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Tube O.D. (inch)	Standard Pack Qty (ft)	Size	Length per Package	Division	Maximum Operating Temperature	Compatible Fitting	Maximum Operating Pressure	Weight	Minimum Operating Temperature	Minimum Burst Pressure	Specifications Met	Tube Outside Diameter	Minimum Bend Radius	Application	Tube Material	Media	Color	Cover Material	Tube Inside Diameter	Outside Diameter	Media	Size	Max. Operating Temperature	Material	Max. Operating Pressure	Wall Thickness	Weight	Min. Operating Temperature	Min. Bend Radius	Inside Diameter	Length	Min. Burst Pressure	Parker Group	Color	Parker Division
PEFR-4-0500	Backordered	Backordered	$0.35/foot	FT	1/4	500	-4	152 m	Parflex Division	66 °C	Compression	0.97 MPa	0.012 lb/ft	-85 °F	38.6 bar	ASTM D1693	6.4 mm	3/4 inch	Fluid Handling	Polyethylene (PE) (Flame Resistant)	Air	Black	n/a	4.3 mm	1/4 Inch 6.4 MM	Air	-4	150 °F 66 °C	Polyethylene (Flame Resistant )	0.97 MPa 9.7 Bar 140 psi	0.040 Inch 1 MM	0.012 LB/ft	-65 °C -85 °F	3/4 Inch 17.4 MM	0.170 Inch 40.3 MM	500 ft 152 M	3.86 MPa 560 psi 38.6 Bar	Fluid Connector	Black	Tubing
PEFR-4-1000	Backordered	Backordered	$0.34/foot	FT	1/4	1000	-4	304 m	Parflex Division	66 °C	Compress-Align®	0.97 MPa	0.012 lb/ft	-85 °F	38.6 bar	UL 94 V-2	1/4 inch	3/4 inch	Pneumatics	Polyethylene (PE) (Flame Resistant)	Air	Black	n/a	4.3 mm	1/4 Inch 6.4 MM	Air	-4	150 °F 66 °C	Polyethylene (Flame Resistant )	0.97 MPa 9.7 Bar 140 psi	0.040 Inch 1 MM	0.012 LB/ft	-85 °F -65 °C	3/4 Inch 17.4 MM	0.170 Inch 4.3 MM	304 M 1000 ft	3.86 MPa 560 psi 38.6 Bar	Fluid Connector	Black	Tubing
PEFR-6-0500	Backordered	Backordered	$0.61/foot	FT	3/8	500	-6	152 m	Parflex Division	66 °C	Fast & Tite®	10.7 bar	0.29 lb/ft	-85 °F	4.28 MPa	UL 94 V-2	3/8 inch	36.1 mm	Fluid Handling	Polyethylene (PE) (Flame Resistant)	Air	Black	n/a	0.250 inch	3/8 Inch 9.5 MM	Air	-6	66 °C 150 °F	Polyethylene (Flame Resistant )	1.7 MPa 10.7 Bar 155 psi	0.062 Inch 1.6 MM	0.29 LB/ft	-65 °C -85 °F	1 1/2 Inch 36.1 MM	0.250 Inch 60.4 MM	152 M 500 ft	620 psi 42.8 Bar 4.28 MPa	Fluid Connector	Black	Tubing
PEFR-8-0250	Backordered	2000 in stock	$1.31/foot	FT	1/2	250	-8	500 ft	Parflex Division	66 °C	Compression	100 psi	0.61 kg/m	-65 °C	400 psi	UL 94 V-2	1/2 inch	1-3/4 inch	Pneumatics	Polyethylene (PE) (Flame Resistant)	Air	Black	n/a	0.375 inch	1/2 Inch 12.7 MM	Air	-8	66 °C 150 °F	Polyethylene (Flame Resistant )	0.7 MPa 6.9 Bar 100 psi	0.062 Inch 1.6 MM	0.41 LB/ft	-85 °F -65 °C	1 3/4 Inch 39.1 MM	0.375 Inch 9.5 MM	500 ft 152 M	400 psi 27.6 Bar 2.76 MPa	Fluid Connector	Black	Tubing
