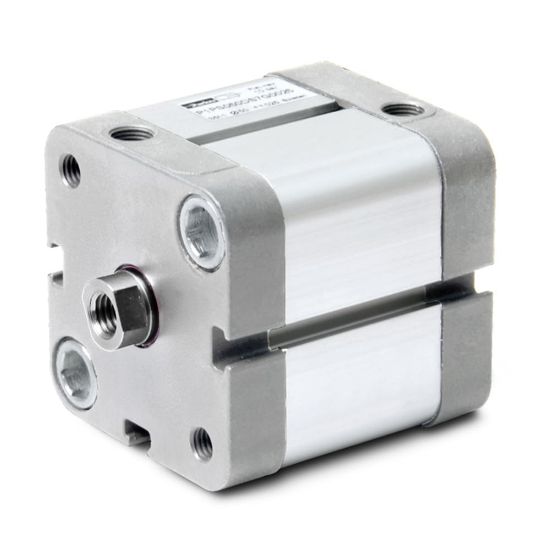

P1PS050DS8G0125 - ISO 21287 COMPACT CYLINDERS, P1P SERIES

The P1P actuator in bore sizes Ø20 to Ø100mm is an ISO 21287 compact cylinder for standard temperature -20°C to +80°C with high and low temperature options suitable for processing, packaging and handling applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 106 days
Partner Available:	Backordered

SKU P1PS050DS8G0125

$298.89/each

Products specifications

Attribute name	Attribute value
UOM	EA	Corrosion Resistance Included	Yes
Division	Pneumatic Division	Body Type	Profile
Cushioning Type	Rubber Buffer Fixed	Maximum Stroke Length	500 mm
Switch Opening Temperature	-40 to 80 °C (Low)	Piston Rod Material	Stainless Steel
Rod End Thread Type	Female	Retract Stroke Force	138 to 4418 N
Port Size	G 1/8	Bore Diameter	20 to 100 mm
Product Type	Compact Cylinder	End Cap Material	Aluminum
Cylinder Action	Double Acting	Technology	Pneumatics
Extend Stroke Force	188 to 4712 N at 6 bar	Cylinder Type	Non-Guided
Product Series	Pneumatic Cylinders	Specifications Met	ISO 21287
Repairable	Yes	Body Material	Aluminum
Operating Temperature	-4 to 176 °F	Mounting Option	ISO 15552
Position Sensing Type	Sensor Slots on 4 Sides	Maximum Operating Pressure	145 psi
