NS-1001-16FP - Non-Spill, Flat Face, Push to Connect Quick Couplings with Sleeve Lock - NS Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	25 in stock

SKU NS-1001-16FP

$314.12/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Body Size (inch)	1	Connection Type	Female NPSF
Connection Thread Size (inch)	1 - 11 1/2	Body Material	Steel
Maximum Operating Pressure	2500 psi	Dimensional Weight	0.6232014388489209 lb
Maximum Operating Temperature	250 °F	Valve Type	Non-spill
Division	Quick Coupling Division	Locking Sleeve Included	Yes
Product Type	Push to Connect	Plating Type	Zinc with Clear Trivalent Chromate
Seal Material	Nitrile	Application	Hydraulics
Flow Rate	50 Gal/min	Hex Size	1.75 inch
Minimum Operating Temperature	-40 °F

Customers who bought this item also bought

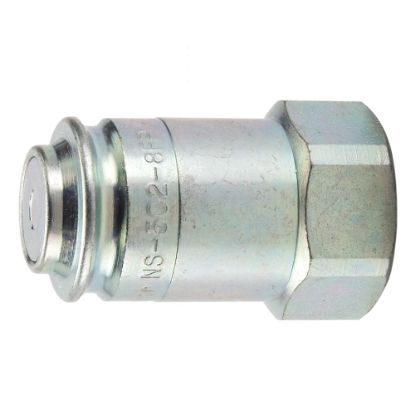

NS-1002-16FP - Non-Spill, Flat Face, Push to Connect Quick Couplings with Sleeve Lock - NS Series
