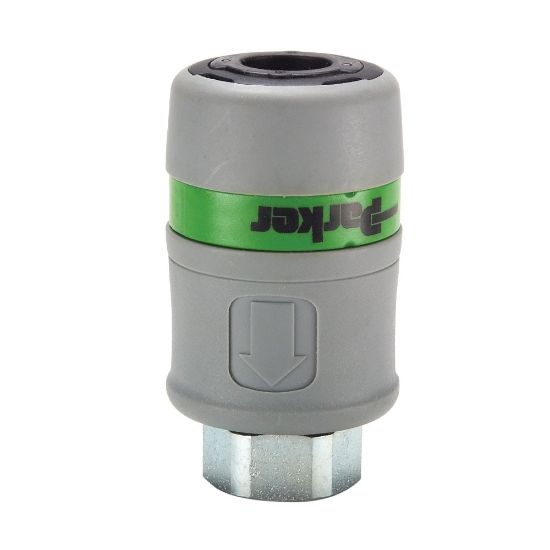

PER-251-4FP - Industrial & European Interchange, Quick Connect Air Couplers - Tool-Mate Standard Series

Parker's non-marking, lightweight, pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	11 in stock

SKU PER-251-4FP

$52.26/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size	1/4"-18
Thread Style	Female	Body Size	1/4"
Connection Type	Female, NPTF	Interface Option	Connects with RF style nipples
Specifications Met	Connects with RF style nipples	Application	Air
Dimensional Weight	0.062320143884892085 lb	Sleeve Type	Push-to-Connect
Coupling Half	Coupler	Media	Compressed Air
Lock Type	Polyacetate Locking Fingers	Plating Type	Galvanized Steel Port Ends
Minimum Operating Temperature	0 °F	Division	Quick Coupling Division
Valve Type	Tubular	Maximum Operating Temperature	160 °F
Seal Material	Nitrile	Maximum Operating Pressure	300 psi
Body Material	Polyamide
