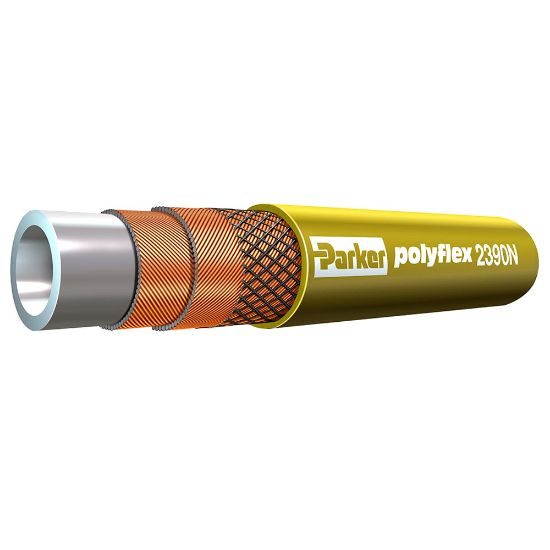

2390N-16V16 - High Pressure Hydraulic Hose - 2390N

Parker high pressure 2390N hydraulic oil and gas hose features low dimensional change under pressure resulting in excellent response times.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2390N-16V16

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-16
Cover Color	Yellow	Maximum Operating Pressure	Obsolete
Media	Petroleum Hydraulic Fluids	Design Factor	4:1
Cover Material	Polyurethane	Division	Parflex Division
Compatible Fitting	E4 Series	Size	-16
Hose Inner Tube Material	Methanol Washed	Maximum Operating Temperature	100 °C
Outside Diameter	35 mm	Weight	0.79 lb/ft
Maximum Operating Pressure	280 bar	Inside Diameter	1 inch
Minimum Operating Temperature	-40 °C	Hose Reinforcement Material	2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire
Minimum Bend Radius	280 mm	Specifications Met	ISO 13628-5
Application	Subsea BOP
