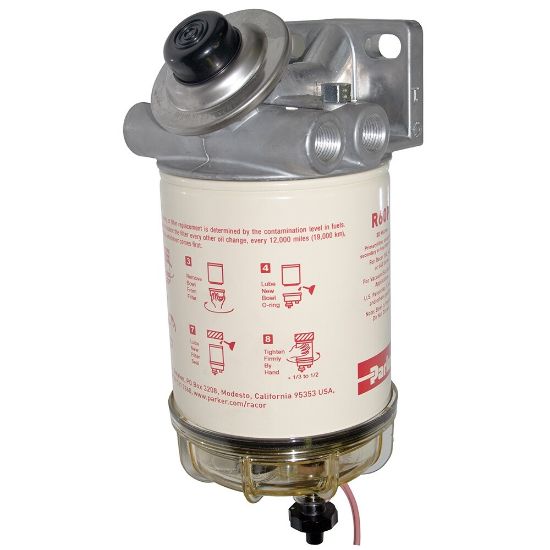

460R1230 - Fuel Filter Water Separator – Racor Spin-on Series

Name: 460R1230 - Fuel Filter Water Separator – Racor Spin-on Series
SKU: 460R1230
Price: 519.89 USD
Availability: InStock

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Manufacturer: Parker

Availability:

9 in stock

Kansas City, KS

Partner Available:

23 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 460R1230

$519.89/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Location	North America and EMEA regions
Micron Rating	98% @ 30 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Heater Power Rating	12V / 300W (Diesel Only)
Flow Rate	60 gph (227 lph)	Port Size	3/8"-18 NPTF (SAE J476)
Product Series	Diesel Spin-on 400	Integral Primer Pump Included	Button Priming Pump (Diesel)
Width	114.0 mm	Number of Ports	2 Inlet / 2 Outlet
Division	Engine Mobile Original Equipment Division	Filter Element Type	30 Micron Aquabloc Spin-on
For Fluid Type	Diesel	Height	279.0 mm
Accessories Included	See Product Support Tab	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	Maximum Fluid Temperature	190.0 °F
Brand	Racor	Compatible Element	R60S = "2" Micron<br/>R60T = 10 Micron<br/>R60P = 30 Micron
Operating Temperature	-40 to 121 °C	Maximum Operating Pressure	30 psi
Weight	1.3 kg	Depth	121.0 mm
Clean Pressure Drop	0.39 psi

Product resources

Literature and Reference Materials

Selector Guides

Racor--400 Diesel Spin-on--RSL0366 (PDF)
