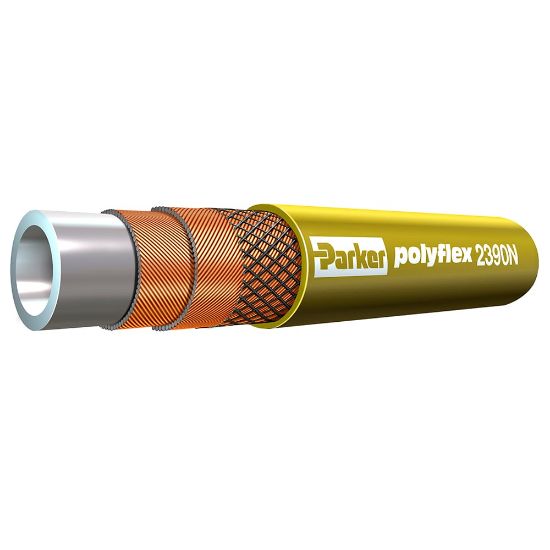

2390N-04V16 - High Pressure Hydraulic Hose - 2390N

Parker high pressure 2390N hydraulic oil and gas hose features low dimensional change under pressure resulting in excellent response times.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	23 in stock

SKU 2390N-04V16

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-4
Cover Color	Yellow	Maximum Operating Pressure	7,000 psi
Media	Petroleum Hydraulic Fluids	Minimum Operating Temperature	-40 °C
Minimum Bend Radius	70 mm	Cover Material	Polyurethane Sea Water Resistant
Size	-4	Division	Parflex Division
Design Factor	4:1	Hose Inner Tube Material	Polyamide (PA)
Maximum Operating Temperature	131 °F	Compatible Fitting	E3 Series
Maximum Operating Pressure	49 MPa	Inside Diameter	1/4 inch
Weight	0.25 kg/m	Application	Oil & Gas
Hose Reinforcement Material	2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire	Specifications Met	ISO 13628-5
Outside Diameter	13.3 mm
