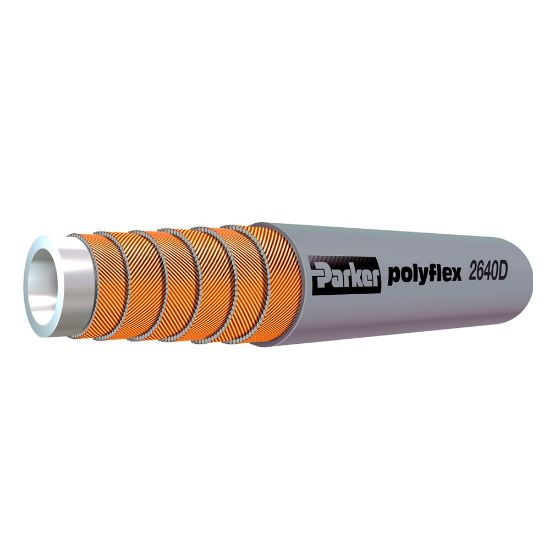

2640D-03V37 - High Pressure Water Jet Hose - 2640D

High Pressure 2640D water jet hoses handles pressures up to 40,600 psi (4,000 bar), making it ideal for water jet cutting equipment and ship washdown applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	156 in stock

SKU 2640D-03V37

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/16
Notes	Obsolete - see PFX25-03	Division	Parflex Division
Application	Waterblasting	Weight	0.41 kg/m
Outside Diameter	12.9 mm	Maximum Operating Pressure	2500 bar
Inside Diameter	4.8 mm	Cover Material	Polyamide (PA)
Specifications Met	DIN 1829-2	Minimum Operating Temperature	-10 °C
Hose Reinforcement Material	6 Spirals of Maximum Tensile Steel Wire	Minimum Bend Radius	175 mm
Compatible Fitting	2X Series	Hose Inner Tube Material	Polyoxymethylene (POM)
Maximum Operating Temperature	158 °F	Design Factor	2.5:1
Media	Water

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
