*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

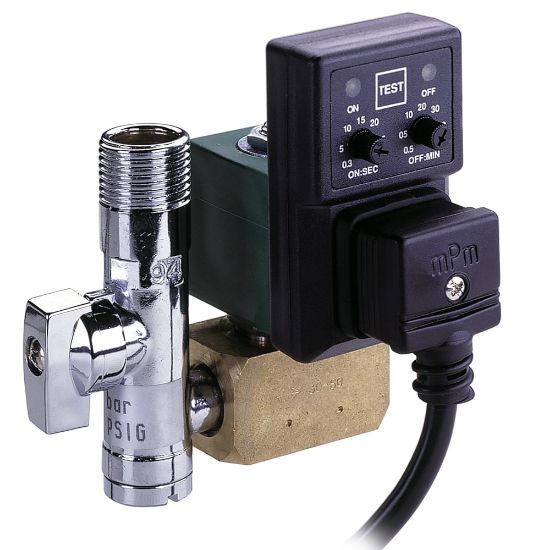

CDV120115 - CDV Series Time Controlled Condensate Drains (up to 50 bar g)

Automatic time controlled condensate drains for industrial compressed air treatment applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 89 days
Partner Available:	Backordered

SKU CDV120115

$462.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	9000 m³/h (88 cfm)
Operating Pressure	Maximum: 16 barg (232 psig)	Electrical Requirements	115/1/50-60 Hz
Maximum Operating Pressure	16 barg	Product Type	Condensate Drain
Technology	Filtration	Brand	Parker
Product Style	Electronic Timed Drain	Operating Temperature	2 to 50 °C
Application	Compressed Air Applications	Product Series	CDV
Materials of Construction	Plastic/brass	Depth	110.0 mm
Outlet Port Size	3/8 inch	Weight	1.5 lb
Division	Gas Separation and Filtration Division EMEA	Ingress Protection Rating	IP65
Division	Gas Separation and Filtration Division EMEA	Connection Type	BSPP
Width	90.0 mm	Industry	Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/>Electronics<br/>Pharmaceuticals
Height	3.5 inch

Product resources

Literature and Reference Materials
