811-32 - Suction and Return Line Hose 62-300 PSI – 811 Hose

Name: 811-32 - Suction and Return Line Hose 62-300 PSI – 811 Hose
SKU: 811-32
Price: 38.63 USD
Availability: InStock

Parker’s 811 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

Manufacturer: Parker

Availability:

678 in stock

Springfield, MO	268
Peoria, IL	107
COLUMBIA, MO	100
Kansas City, KS	74
Olivette, MO	63
Wichita, KS	35
Joplin, MO	29

Partner Available:

3318 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 811-32

$38.63/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-32
Division	Hose Products Division	Vacuum Pressure Rating	84 kPa
Media	Petroleum Hydraulic Fluids	Maximum Operating Temperature	212 °F
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	152 mm
Hose Reinforcement Material	Multiple Layers of Spiral Fiber with Wire Helix	Specifications Met	USCG HF
Hose Cover Type	Standard Cover	Cover Material	Synthetic Rubber
Nominal Hose Inside Diameter	50 mm	Maximum Operating Pressure	100 psi (w/ 81/88DB)
Inside Diameter	2 inch	Outside Diameter	63.6 mm
Weight	1.87 kg/m	Application	Lubricating Oils

Customers who bought this item also bought

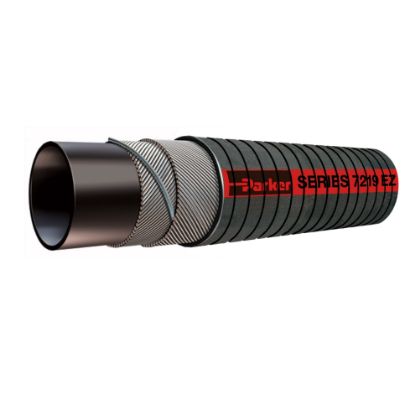

7219-2500025 - E-Z Form MP Oil Resistant Flexible Suction Hose, Multipurpose, Series 7219
