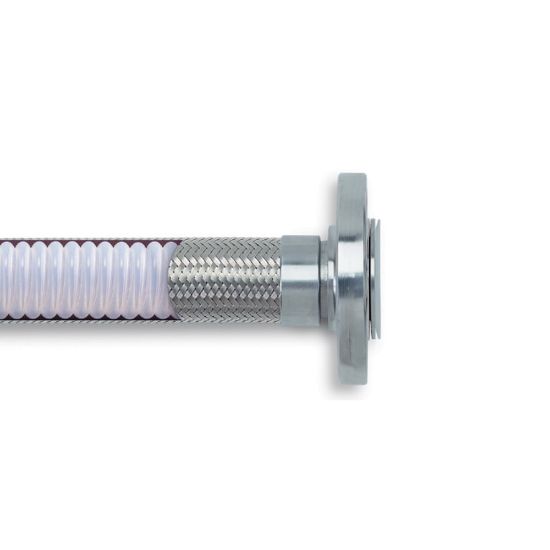

16-SCW - Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB

Parker SCW and SCB hoses are seamless, low profile, environmentally safe, self-draining and able to withstand extreme flexing. They are suitable for fluid handling, chemical transfer, paint and semiconductor applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	2 Limited Stock

SKU 16-SCW

$57.49/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose Style	Natural
Hose I.D. (inch)	1	Application	Fluid Handling
Specifications Met	FDA (Core Tube)	Minimum Operating Temperature	-100
Hose Reinforcement Material	Braid of 304 Stainless Steel	Minimum Bend Radius	2-1/2
Outside Diameter	34	Maximum Operating Pressure	1000
Weight	0.37	Vacuum Pressure Rating	28
Inside Diameter	1	Compatible Fitting	PAGE Series
Maximum Operating Temperature	500	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)
Division	Parflex Division	Size	-16
Cover Material	n/a	Media	Air
Design Factor	4:1
