*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

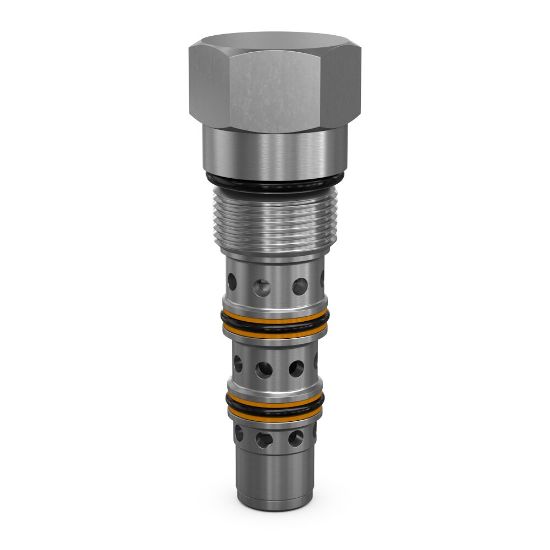

K04F3-10.0N - Cartridge Spool Type Shuttle Valves with All Ports Open

REGIONAL - Parker's 3-position, 3-way spool type open center shuttle valves are available in two cavity sizes and are pilot controlled. These shuttle valves are capable of flows up to 100 lpm (26 gpm) and 420 bar (6000 psi).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 185 days
Partner Available:	Backordered

SKU K04F3-10.0N

$237.82/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Flow Rate	26 GAL/MIN, 100 L/MIN	Switching Pressure	145 PSI, 10 BAR
Flow Rate	100 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Switching Pressure	145 psi
Cavity Size	C10-4	Operation Type	Spring Centered, All Parts Open
Division	Mobile Hydraulic Systems Division Europe	Body Material	N/A
Installation Torque	50 Nm	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	3-way Spool Type	Maximum Operating Pressure	6000 psi
Weight	0.17 kg	Operating Temperature	-30 to +250 °F
Actuation Type	Pressure Sensing	Seal Material	Nitrile
Leak Rate	N/A	Maximum Flow Rate	100 L/min
Maximum Operating Temperature	+250 °F	Valve Material	All parts steel. All operating parts hardened steel
Standard Flow Rate Setting	55 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Inlet Pressure Rating	420 bar	Function	Shuttle
