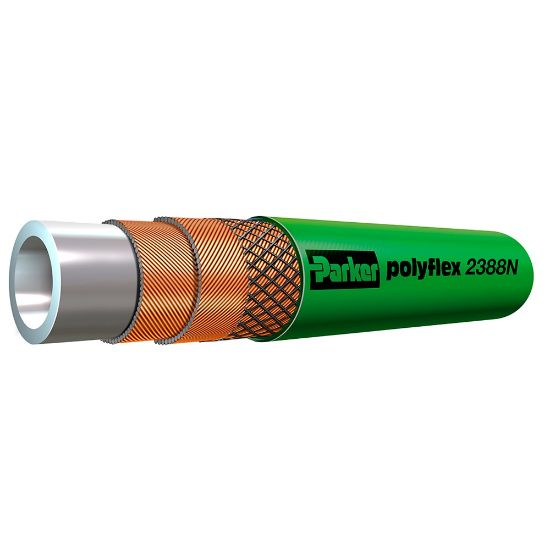

2388N-04V13W - Water Blast Hose - 2380N/2388N

Parker 2380N/2388N high pressure waterblast hoses operate up to 18,000 psi (1200 bar) and are ideal for dirt and paint removal.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	265 in stock

SKU 2388N-04V13W

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Cover Color	Green	Media	Chemicals
Design Factor	2.5:1	Cover Material	Polyurethane
Division	Parflex Division	Size	-4
Maximum Operating Temperature	158 °F	Hose Inner Tube Material	Polyamide (PA)
Compatible Fitting	KY Series	Inside Diameter	1/4 inch
Weight	0.20 lb/ft	Outside Diameter	13.4 mm
Maximum Operating Pressure	128 MPa	Minimum Bend Radius	1-1/2 inch
Minimum Operating Temperature	-40 °F	Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire
Application	Waterblasting	Specifications Met	DIN 1829-2

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
