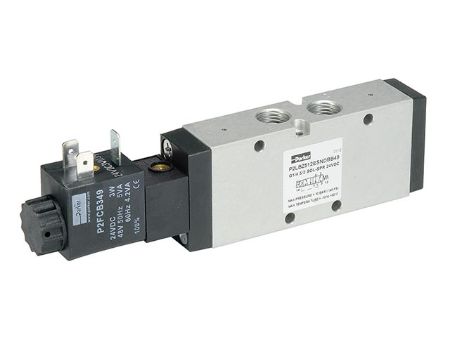

Viking Lite Series Single Solenoid 4-way 2-position Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Inline Solenoid operated (IP65, RoHS, CE) pneumatic valve with Parker's exclusive Wear Compensation System (WCS) spool seals. No lubrication required.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Offset Return Type | Solenoid Voltage | CV Factor | Port | Pilot Supply | Pkg Qty | Override Type | Operator Type Detail | Parker Division | Operator Type Detail | Port Inch/BSP | Series | Supply Pressure Range | Solenoid Connection | Operator Type | Port | Valve Passages | Override Type | Solenoid Voltage | Offset Return Type | Trade Name | Operating Temperature | Pneumatic Valve Type | CV Factor | Valve Positions | Pilot Supply | Parker Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P2LAZ591ESNDBB49 | 2 Limited Stock | 15 in stock | $61.44/each | EA | EA | Spring Return | 24VDC | 0.6 | 1/8 NPT | Internal | 1 | Non-locking | Single | Pneumatic | Single | NPT | Viking Lite | 43.5 to 145 PSIG (3 to 10 bar) | 22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”) | Solenoid | 1/8 NPT | 4-way | Non-locking | 24VDC | Spring Return | Viking Lite | 14°F to 122°F (-10°C to 50°C) | Inline Valve | 0.6 | 2-position | Internal | Automation | |
| P2LAZ591ESNDBB53 | 1 Limited Stock | 79 in stock | $61.44/each | EA | EA | Spring Return | 120VAC | 0.6 | 1/8 NPT | Internal | 1 | Non-locking | Single | Pneumatic | Single | NPT | Viking Lite | 43.5 to 145 PSIG (3 to 10 bar) | 22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”) | Solenoid | 1/8 NPT | 4-way | Non-locking | 120VAC | Spring Return | Viking Lite | 14°F to 122°F (-10°C to 50°C) | Inline Valve | 0.6 | 2-position | Internal | Automation | |
| P2LBZ592ESNDBB49 | Backordered | 40 in stock | $88.74/each | EA | EA | Spring Return | 24VDC | 1.5 | 1/4 NPT | Internal | 1 | Non-locking | Single | Pneumatic | Single | NPT | Viking Lite | 43.5 to 145 PSIG (3 to 10 bar) | 22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”) | Solenoid | 1/4 NPT | 4-way | Non-locking | 24VDC | Spring Return | Viking Lite | 14°F to 122°F (-10°C to 50°C) | Inline Valve | 1.5 | 2-position | Internal | Automation | |
| P2LBZ592ESNDBB53 | 17 in stock | 139 in stock | $68.26/each | EA | EA | Spring Return | 120VAC | 1.5 | 1/4 NPT | Internal | 1 | Non-locking | Single | Pneumatic | Single | NPT | Viking Lite | 43.5 to 145 PSIG (3 to 10 bar) | 22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”) | Solenoid | 1/4 NPT | 4-way | Non-locking | 120VAC | Spring Return | Viking Lite | 14°F to 122°F (-10°C to 50°C) | Inline Valve | 1.5 | 2-position | Internal | Automation | |
| P2LCZ593ESNDBB49 | Backordered | 15 in stock | $115.08/each | EA | EA | Spring Return | 24VDC | 2.5 | 3/8 NPT | Internal | 1 | Non-locking | Single | Pneumatic | Single | NPT | Viking Lite | 43.5 to 145 PSIG (3 to 10 bar) | 22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”) | Solenoid | 3/8 NPT | 4-way | Non-locking | 24VDC | Spring Return | Viking Lite | 14°F to 122°F (-10°C to 50°C) | Inline Valve | 2.5 | 2-position | Internal | Automation | |
| P2LCZ593ESNDBB53 | Backordered | 16 in stock | $115.08/each | EA | EA | Spring Return | 120VAC | 2.5 | 3/8 NPT | Internal | 1 | Non-locking | Single | Pneumatic | Single | NPT | Viking Lite | 43.5 to 145 PSIG (3 to 10 bar) | 22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”) | Solenoid | 3/8 NPT | 4-way | Non-locking | 120VAC | Spring Return | Viking Lite | 14°F to 122°F (-10°C to 50°C) | Inline Valve | 2.5 | 2-position | Internal | Automation |
