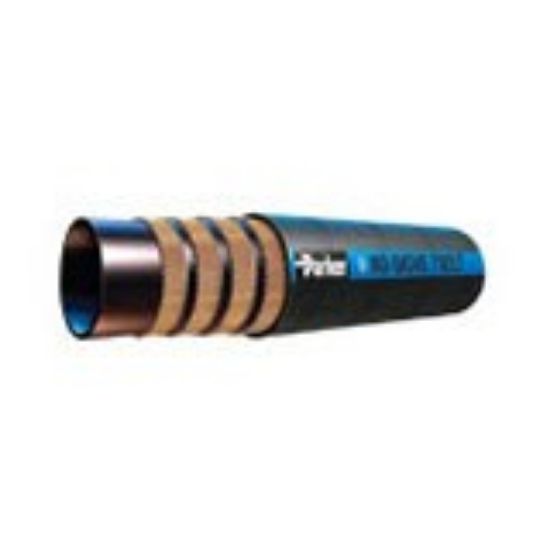

792LT-20 - Hydraulic Low-Temperature Hose 6000 PSI - 792LT Hose

Parker's 792LT hose is a hydraulic low-temperature hose with a working pressure of 6000 PSI in all sizes, designed specifically to excel in the brutal operating conditions of the extreme cold.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	147 in stock

SKU 792LT-20

$708.63/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Compatible Fitting	79 Series	Maximum Operating Temperature	100 °C
Hose Inner Tube Material	Synthetic Rubber	Division	Hose Products Division
Minimum Bend Radius	445 mm	Minimum Operating Temperature	-70 °F
Cover Material	PKR® Rubber	Media	Petroleum Hydraulic Fluids
Nominal Hose Inside Diameter	31 mm	Outside Diameter	1.970 inch
Hose Reinforcement Material	High Tensile Steel	Specifications Met	EN
Application	Petroleum Base Hydraulic Fluids	Weight	3.69 kg/m
Maximum Operating Pressure	6000 psi	Inside Diameter	1-1/4 inch
