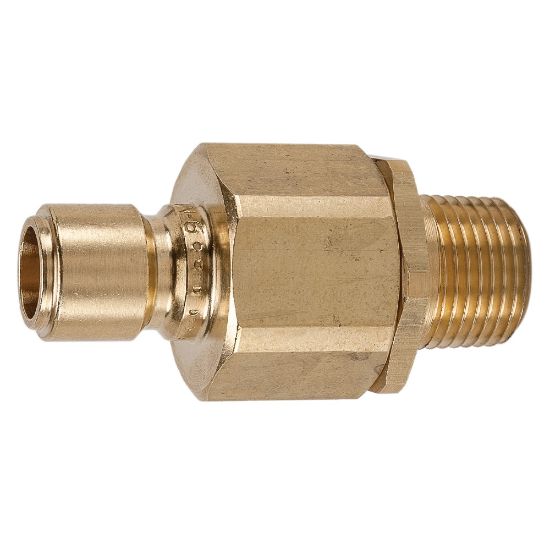

BVEAN12-12M - Vacuum and Medium Pressure Quick Couplings - EA Series

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU BVEAN12-12M

$116.70/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Coupling Half	Male Nipple	Connection Type	Male NPTF
Connection Thread Size (inch)	3/4 - 14	Body Size (inch)	3/4
Maximum Operating Pressure	1500	Body Material	Brass
Vacuum Pressure Rating	3/4 Inch-Hg	Valve Type	Poppet
Division	Quick Coupling Division	Application	Vacuum and medium pressure hydraulics
Plating Type	na	Hex Size	1.5 inch
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	250 °F
Seal Material	Nitrile	Product Type	Manual Connect
