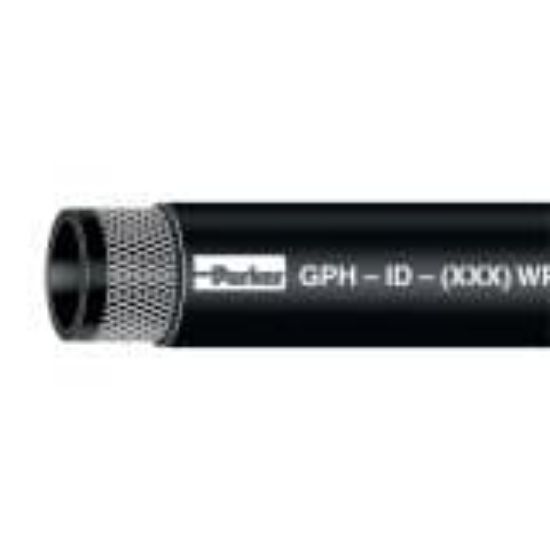

GPH-6BLK500RL - PVC General Purpose Hose, Series GPH

Name: GPH-6BLK500RL - PVC General Purpose Hose, Series GPH
SKU: GPH-6BLK500RL
Price: 2.17 USD
Availability: InStock

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

Manufacturer: Parker

Availability:

299 in stock

Kansas City, KS

299

Partner Available:

865 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU GPH-6BLK500RL

$2.17/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/8
Color	Black	Maximum Working Pressure (psi)	300
Vacuum Pressure Rating	23 Inch-Hg	Cover Color	Black
Division	Hose Products Division	Length per Package	500 ft
Maximum Operating Temperature	65 °C	Compatible Fitting	HY Series
Hose Inner Tube Material	Prime PVC	Media	Lubricants (Oil Mist)
Cover Material	PVC	Minimum Operating Temperature	-15 °F
Hose Reinforcement Material	2 Plies of Textile	Cover Structure	Smooth
Minimum Bend Radius	1 inch	Application	PVC Hose
Weight	0.05 kg	Inside Diameter	9.5 mm
Maximum Operating Pressure	20.7 bar	Outside Diameter	0.640 inch
Package Type	Coil

Product resources

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
