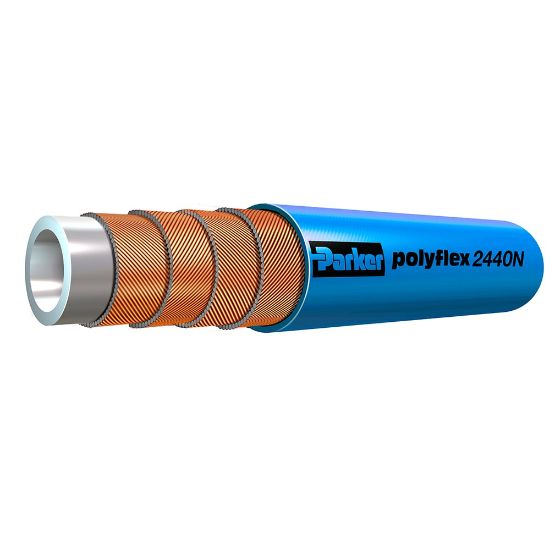

2440N-04V32 - Ultra High Pressure Waterblast Hose - 2440N

Parker 2440N waterblast hoses operate up to 20,000 psi (1400 bar) and are ideal for hydrodemolition applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	75 in stock

SKU 2440N-04V32

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Maximum Operating Pressure	1400 bar	Inside Diameter	1/4 inch
Outside Diameter	0.510 inch	Weight	0.21 lb/ft
Minimum Operating Temperature	-40 °C	Hose Reinforcement Material	4 Spirals of Maximum Tensile Steel Wire
Minimum Bend Radius	155 mm	Specifications Met	DIN 1829-2
Application	Industrial Cleaning	Design Factor	2.5:1
Media	Chemicals	Cover Material	Polyamide (PA)
Division	Parflex Division	Hose Inner Tube Material	Polyamide (PA)
Maximum Operating Temperature	212 °F	Compatible Fitting	LX Series

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Selector Guides

UHP Waterblast Selection Poster--4900-WB-Selection (PDF)
