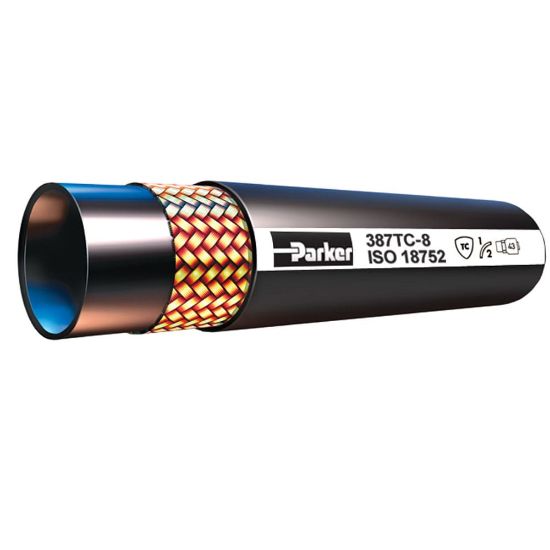

387-4 - Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose

Part of Parker’s GlobalCore constant working pressure hose line, lightweight and flexible 387 hoses consistently deliver 3,000 PSI performance across markets and across the globe.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	890 in stock

SKU 387-4

$5.81/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-4
Hose Cover Type	Standard Cover	Size	-4
Division	Hose Products Division	Maximum Operating Temperature	100 °C
Hose Inner Tube Material	Synthetic Rubber	Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
Compatible Fitting	43 Series	Inside Diameter	1/4 inch
Weight	0.24 kg/m	Maximum Operating Pressure	3000 psi
Hose Reinforcement Material	1 Braid of Steel Wire	Specifications Met	ISO 18752, Type AC
Application	Lubricating Oils	Outside Diameter	13.4 mm
Nominal Hose Inside Diameter	6 mm	Hose Cover Type	Standard Cover
Media	Lubricants	Minimum Bend Radius	2 inch
Minimum Operating Temperature	-40 °F	Cover Material	Synthetic Rubber
