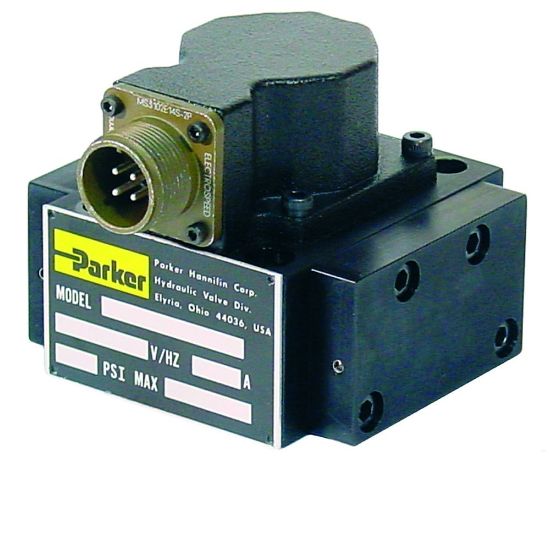

SE20SAAFPNA20 - Two-stage, 4 way, Flapper and Nozzle Servovalve - SE20 Series

Parker’s SE20 series valve is a two stage, 4-way, flapper and nozzle style servovalve.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 124 days
Partner Available:	Backordered

SKU SE20SAAFPNA20

$24,281.88/each

Products specifications

Attribute name	Attribute value
UOM	EA	Size	ISO 10372 standard 22.23 mm
Maximum Operating Pressure	4500 PSI	Flow Rate (gpm)	20
Body Material	Aluminum	Weight	1 kg
Maximum Operating Pressure	315 bar	Additional Options	Consult catalog for Additional features
Connection Type	Port P; (+) signal to A, C	Resistance	80 Ohms; 40 mA (Parallel); 20 mA (Series) ohm-cm
Maximum Operating Temperature	+140 °F	Valve Type	Servovalve
Division	Hydraulic Valve Systems Division	Maximum Flow Rate	20 Gal/min
Pilot Port Type	Internal	Seal Material	Nitrile
Minimum Operating Temperature	-4 °F	Signal Input	Standard
Actuation Type	Hydraulic Pressure

Product resources

Literature and Reference Materials

Two-stage, 4 way, Flapper and Nozzle Servovalve Catalog - SE20 Series (PDF)
